Slewing Bearing Manufacturing Solutions

Slewing bearings are large-diameter rolling element bearings that enable rotational movement between components in heavy machinery. They support axial, radial, and moment loads simultaneously while providing smooth rotation.

Common Customer Challenges

  • Large Ring Manufacturing: Producing large-diameter rings (1-10m) with precise geometry, roundness, and dimensional stability from heavy forgings or castings.
  • Raceway Precision: Achieving ultra-precise raceway geometry, surface finish, and hardness for optimal rolling element performance and long service life.
  • Gear Integration: Cutting high-precision internal or external gears on bearing rings while maintaining raceway integrity and dimensional accuracy.
  • Heat Treatment Control: Managing distortion and achieving uniform hardness distribution across large ring sections during heat treatment processes.
  • Assembly Precision: Assembling large bearings with precise preload control, proper sealing, and accurate gear meshing for optimal performance.
  • Load Testing: Conducting comprehensive load testing under combined axial, radial, and moment loads to verify performance and safety.

Manufacturing Solutions

Large Ring Slewing Bearings

  • Technical Points: Heavy ring forging, precision machining, controlled heat treatment, raceway grinding, gear cutting integration.
  • Process Route: Forging → Rough machining → Heat treatment → Precision machining → Raceway grinding → Gear cutting → Assembly.
  • Success Case: Wind turbine slewing bearing, diameter 4.2m, raceway roundness ≤0.02mm, gear accuracy DIN 6, service life 20+ years.
Large Ring Slewing Bearings

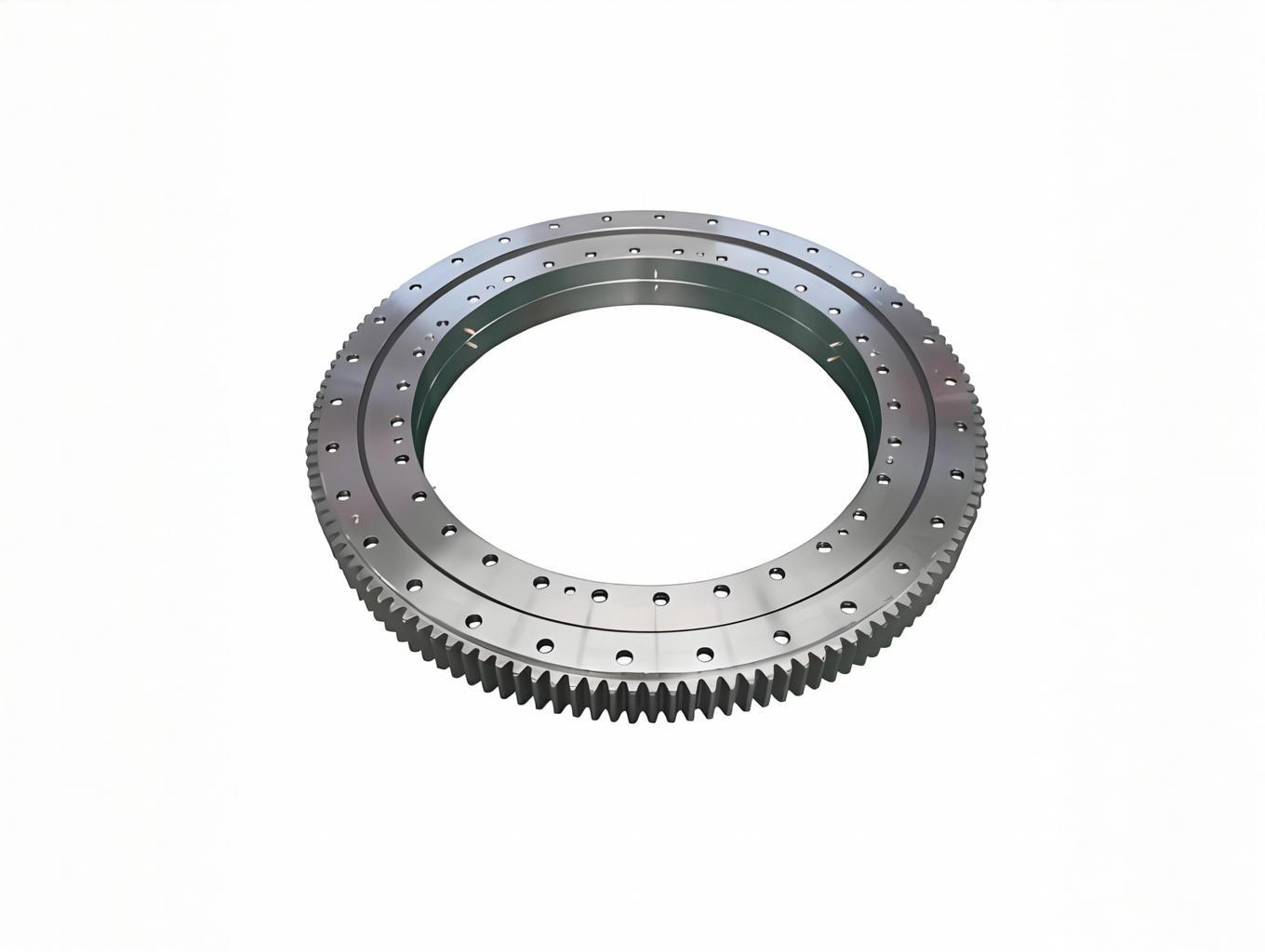

Single Row Ball Slewing Bearings

Single Row Ball Slewing Bearings

  • Technical Points: Optimized raceway geometry, precise ball sizing, controlled preload, effective sealing systems.
  • Process Route: Ring machining → Heat treatment → Raceway grinding → Ball selection → Assembly → Testing.
  • Success Case: Crane slewing bearing, load capacity 5000kN, rotation accuracy ±0.1°, maintenance-free operation.

Cross Roller Slewing Bearings

  • Technical Points: Complex raceway geometry, precision roller sizing, cage design, high moment load capacity.
  • Process Route: Ring machining → Heat treatment → Raceway grinding → Roller manufacturing → Cage assembly → Final assembly.
  • Success Case: Excavator bearing, moment capacity 15000kNm, compact design, high efficiency.
Cross Roller Slewing Bearings

Slewing Bearing Manufacturing Process

Raw Materials And Incoming Materials Inspection
  • Process step description: Verify steel grade, dimensions, forging quality, and internal defects; sample chemistry and mechanical properties.
  • Equipment: Optical spectrometer, universal testing machine, ultrasonic flaw detector, CMM, hardness tester, metallographic microscope.
Ring Forging And Preparation
  • Process step description: Forge large rings from billets, control grain flow, and establish basic geometry for subsequent machining.
  • Equipment: Large forging press, ring rolling mill, heating furnace, temperature monitoring system.
Rough Machining And Stock Removal
  • Process step description: Remove excess material and establish basic geometry using high-efficiency roughing operations with proper fixturing.
  • Equipment: CNC milling machine, turning center, machining center, roughing tools, precision fixtures.
Heat Treatment And Stress Relief
  • Process step description: Apply solution treatment, aging or stress relief to achieve target mechanical properties and dimensional stability.
  • Equipment: Heat treatment furnace, aging furnace, stress relief furnace, temperature monitoring system, atmosphere control.
Precision Machining And Finishing
  • Process step description: Machine critical features, surfaces and assembly interfaces to specified dimensions and surface quality requirements.
  • Equipment: 5-axis machining center, precision milling machine, turning center, grinding machine, CMM.
Raceway Grinding And Finishing
  • Process step description: Grind raceway surfaces to ultra-precise geometry, surface finish, and dimensional accuracy.
  • Equipment: Large raceway grinding machine, form grinding wheels, surface roughness tester, roundness tester.
Gear Cutting (If Required)
  • Process step description: Cut internal or external gears on bearing rings while maintaining raceway integrity.
  • Equipment: Large gear cutting machine, gear hobber, gear shaper, gear measurement center.
Precision Straightening (As Required)
  • Process step description: Correct distortion on long structural members and verify straightness using precision straightening equipment.
  • Equipment: Precision straightening machine, laser distance gauge, multi-point straightening fixture, straightness tester.
Rolling Element Manufacturing
  • Process step description: Manufacture precision balls or rollers with controlled size, roundness, and surface quality.
  • Equipment: Ball grinding machine, roller grinding machine, size sorting equipment, surface finish tester.
Cage And Seal Manufacturing
  • Process step description: Manufacture bearing cages and sealing systems for proper element spacing and contamination protection.
  • Equipment: CNC machining center, injection molding machine, seal cutting equipment.
Assembly And Preload Control
  • Process step description: Assemble bearing components with precise preload control and proper sealing installation.
  • Equipment: Assembly fixtures, preload measurement equipment, torque wrenches, seal installation tools.
Load Testing And Validation
  • Process step description: Conduct comprehensive load testing under combined loads to verify performance and safety.
  • Equipment: Large load testing rig, hydraulic actuators, load cells, data acquisition system.
Final Inspection And Documentation
  • Process step description: Conduct final quality checks, generate inspection reports and prepare documentation for airworthiness certification.
  • Equipment: Visual inspection station, documentation system, barcode printer, quality management software.
Packaging And Shipping
  • Process step description: Apply protective packaging and shipping preparation to prevent damage during transportation and storage.
  • Equipment: Protective packaging system, shipping fixtures, environmental monitoring, handling equipment.
Data Traceability And Quality Control
  • Process step description: Maintain complete traceability of materials, processes and inspections for airworthiness compliance and quality control.
  • Equipment: MES, data acquisition system, quality management system, barcode/RFID system, document management.

Slewing Bearing Production Line

Production Line Layout And Configuration

  • Overall Layout: Linear layout optimized for large, heavy ring components, minimizing handling and maximizing efficiency.
  • Workstation Division: Material preparation → Forging → Rough machining → Heat treatment → Precision machining → Raceway grinding → Gear cutting → Assembly → Testing.
  • Logistic Passage: Main aisle 8-10 m wide, auxiliary aisles 4-5 m; multiple overhead cranes (100-200 ton capacity) covering all major workstations.
  • Buffer Zone Setup: Large buffer areas (6-12 hours WIP) before heat treatment, precision machining, and assembly to stabilize production flow.

Equipment Configuration And Automation

Forging And Preparation Station

  • Large Forging Press: 1 unit, 10,000-20,000 ton capacity, for heavy ring forging.
  • Ring Rolling Mill: 1 unit, for precision ring rolling and size control.
  • Heating Furnaces: 2 units, for billet heating and temperature control.
  • Automation: Automated billet handling, temperature monitoring, forging parameter control.

Heat Treatment Station Equipment Configuration

Precision Machining Station Equipment Configuration

  • Large Precision Turning Lathes: 2 units, for precision turning and finishing operations.
  • Horizontal Boring Mills: 2 units, for precision boring and milling.
  • CNC Machining Centers: 2 units, for complex feature machining.
  • Automation: On-machine probing, automatic compensation, quality gates.

Assembly And Testing Station

  • Large Assembly Fixtures: Custom-designed for precise bearing assembly.
  • Preload Measurement Equipment: For accurate preload control.
  • Load Testing Rigs: 1 unit, for comprehensive load testing.
  • Automation: Automated assembly sequences, torque control, test data logging.

Production Flow And Material Handling

  • Material Flow: Raw steel billets → Forging → Rough machining → Heat treatment → Precision machining → Raceway grinding → Gear cutting → Assembly → Testing → Packaging.
  • Handling: Overhead cranes (100-200 tons), heavy-duty forklifts, specialized ring handling equipment.
  • Protection: Edge guards, non-marring supports, corrosion-preventive handling.
