End Mill Manufacturing Solutions
Common Customer Challenges
- Cutting Edge Precision: Achieving precise cutting edge geometry, helix angle accuracy, and consistent flute design for optimal milling performance.
- Heat Treatment Control: Ensuring uniform hardness distribution and proper toughness balance for cutting performance and tool life.
- Surface Coating Quality: Applying durable coatings (TiN, TiAlN, DLC) with proper adhesion and thickness for enhanced performance.
- Chip Evacuation Design: Optimizing flute geometry and surface finish for efficient chip removal and surface quality.
- Tool Life Consistency: Maintaining consistent tool life and performance across large production runs and different materials.
- Batch Quality Control: Ensuring dimensional accuracy and cutting performance consistency across all end mill sizes and types.
Manufacturing Solutions

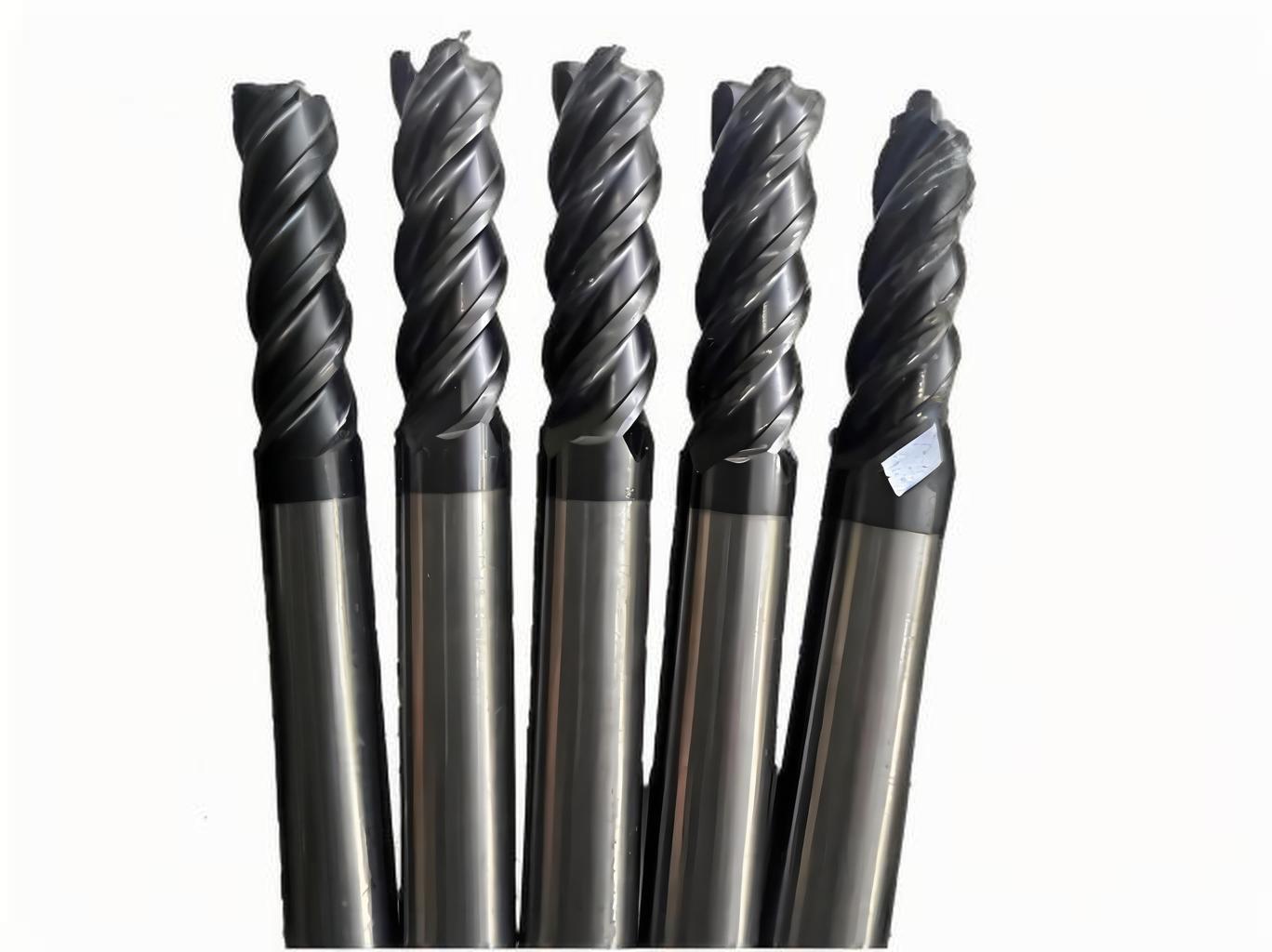

Solid Carbide End Mills
- Technical Points: Carbide grade selection, cutting edge preparation, coating optimization, chip breaker design.
- Process Route: Carbide blank preparation → Grinding → Coating → Testing.
- Success Case: Solid carbide end mills, cutting speed 2x HSS, tool life 5x improvement, surface finish Ra≤0.4μm.

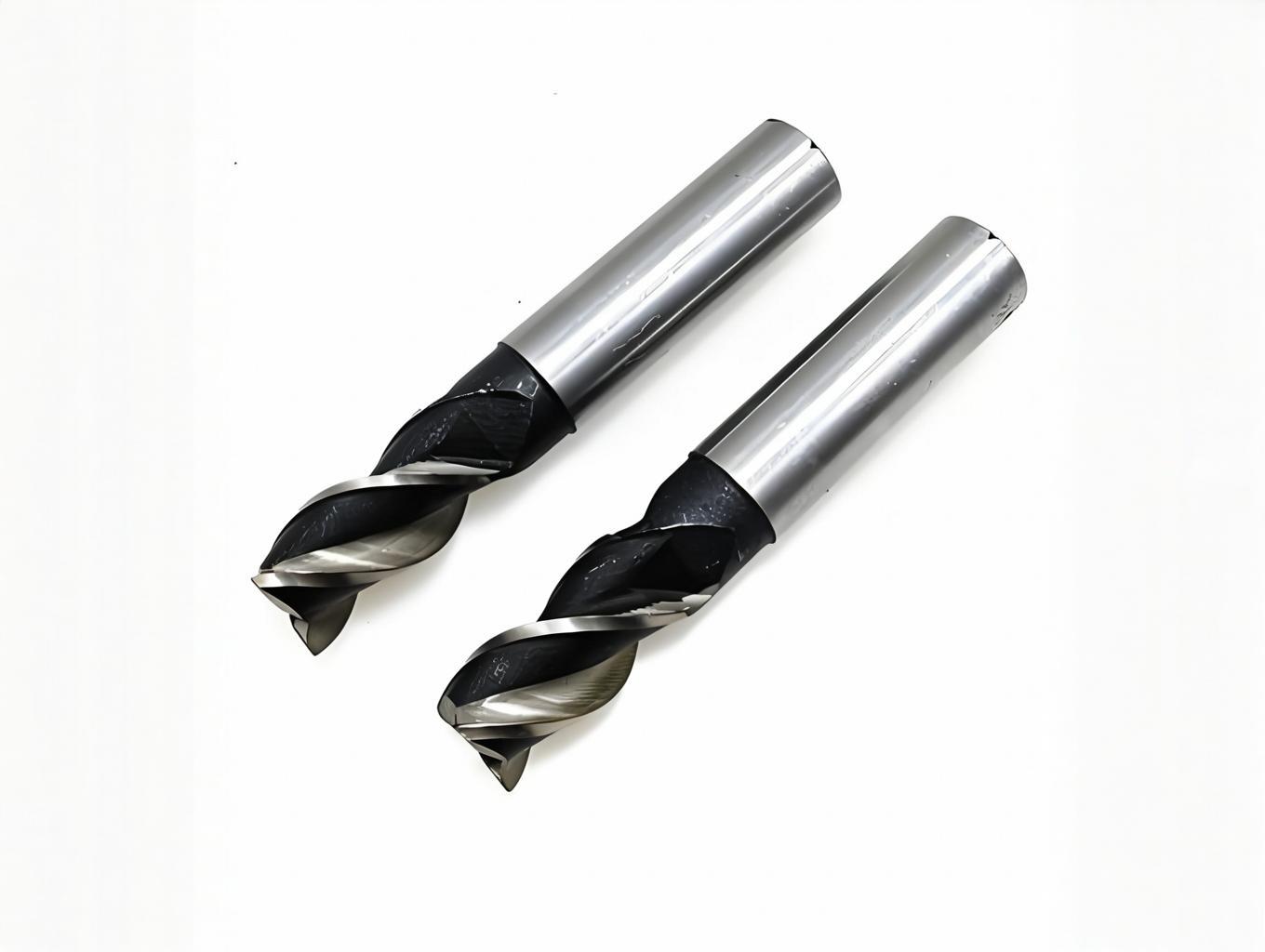

High-Speed Steel End Mills
- Technical Points: Precise helix angle, cutting edge geometry, flute surface finish, heat treatment control.
- Process Route: Bar preparation → Machining → Heat treatment → Grinding → Coating → Testing.
- Success Case: HSS end mills, helix angle accuracy ±0.2°, tool life 3x industry standard, dimensional accuracy ±0.005mm.

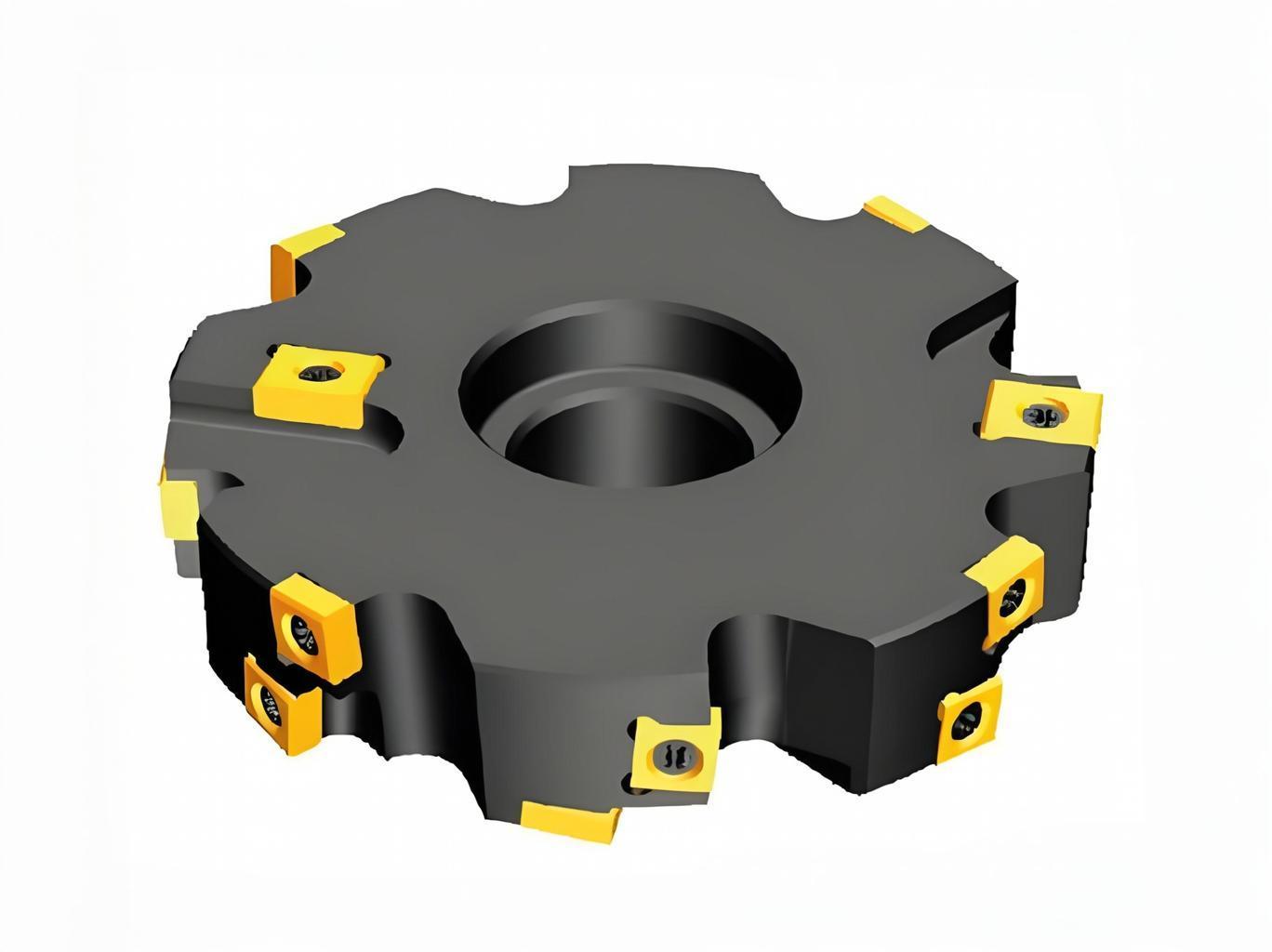

Indexable End Mills
- Technical Points: Insert pocket precision, cutting edge consistency, chip evacuation, tool holder accuracy.
- Process Route: Machining → Heat treatment → Precision grinding → Insert mounting → Testing.
- Success Case: Indexable end mills, insert pocket accuracy ±0.002mm, tool life 4x improvement, cost reduction 30%.

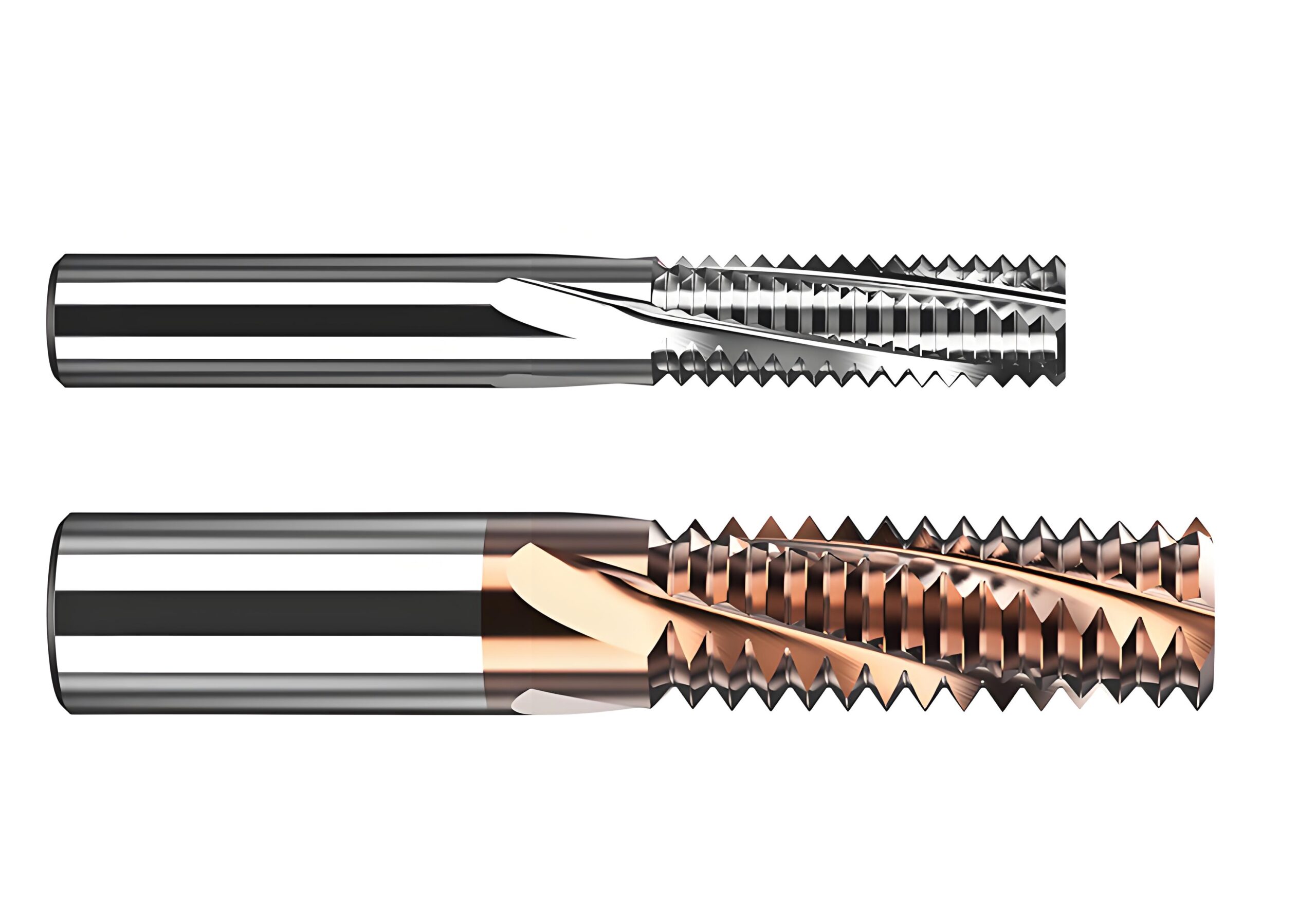

Thread Milling End Mills
- Technical Points: Custom geometry design, material-specific optimization, coating selection, performance validation.
- Process Route: Design → Manufacturing → Heat treatment → Coating → Testing → Validation.
- Success Case: Aerospace end mills, titanium milling capability, surface quality improvement 50%, tool life 4x standard.
End Mill Manufacturing Process
Raw Materials And Incoming Materials Inspection
- Process step description: Verify steel grade, dimensions, surface quality, and internal defects; sample chemistry and mechanical properties.
- Equipment: Optical spectrometer, universal testing machine, ultrasonic flaw detector, CMM, hardness tester, metallographic microscope.
Bar Preparation And Cutting
- Process step description: Cut steel bars or carbide blanks to required lengths with proper edge quality for subsequent machining.
- Equipment: CNC cutting machine, band saw, diamond saw, edge deburring machine, dot peen marker.
Rough Machining And Forming
- Process step description: Machine basic end mill shape, flutes, and shank geometry using precision machining operations.
- Equipment: CNC lathe, milling machine, machining center, roughing tools, precision fixtures.
Heat Treatment And Hardening
- Process step description: Apply quenching and tempering to achieve target hardness and toughness properties.
- Equipment: Heat treatment furnace, quench tank, tempering furnace, hardness tester, metallographic microscope.
Precision Machining And Finishing
- Process step description: Machine critical features, surfaces and assembly interfaces to specified dimensions and surface quality requirements.
- Equipment: 5-axis machining center, precision milling machine, turning center, grinding machine, CMM.
Cutting Edge Preparation
- Process step description: Grind and sharpen cutting edges to precise geometry and sharpness for optimal cutting performance.
- Equipment: Precision grinding machine, sharpening equipment, cutting edge measurement tools.
Surface Treatment And Coating
- Process step description: Apply TiN, TiAlN, DLC, or other coatings for enhanced performance and tool life.
- Equipment: PVD coating system, CVD coating system, coating thickness gauge, adhesion tester.
Flute Polishing And Finishing
- Process step description: Polish flute surfaces for improved chip evacuation and surface finish.
- Equipment: Polishing machine, abrasive media, surface finish measurement equipment.
Quality Testing And Verification
- Process step description: Test hardness, gripping force, cutting performance, and perform visual inspection for defects.
- Equipment: Hardness tester, force measurement equipment, cutting test equipment, visual inspection station, CMM.
Final Inspection And Documentation
Process step description: Conduct final quality checks, generate inspection reports and prepare documentation for airworthiness certification. Equipment: Visual inspection station, documentation system, barcode printer, quality management software.
Packaging And Shipping
Process step description: Apply protective packaging and shipping preparation to prevent damage during transportation and storage. Equipment: Protective packaging system, shipping fixtures, environmental monitoring, handling equipment.
Data Traceability And Quality Control
- Process step description: Maintain complete traceability of materials, processes and inspections for airworthiness compliance and quality control.
- Equipment: MES, data acquisition system, quality management system, barcode/RFID system, document management.
End Mill Production Line
Production Line Layout And Configuration
- Overall Layout: Linear layout optimized for high-volume production with efficient material flow and minimal handling.
- Workstation Division: Material preparation → Machining → Heat treatment → Grinding → Coating → Testing → Packaging.
- Logistic Passage: Main aisle 3-4 m wide, auxiliary aisles 2-2.5 m; conveyor systems for efficient part handling between stations.
- Buffer Zone Setup: Buffer inventory (2-4 hours WIP) between machining, heat treatment, and grinding to balance production tempo.
Equipment Configuration And Automation
Machining Station Equipment Configuration
- CNC Lathes: 3-4 units, for precision turning and basic shape machining.
- CNC Milling Machines:2-3 units, for flute machining and complex geometry.
- Machining Centers: 2 units, for multi-operation machining.
- Automation: Automated tool changing, in-process measurement, adaptive control.
Heat Treatment Station Equipment Configuration
- Heat Treatment Furnaces: 2 units, capacity 1m×1m×1m, temperature control ±5°C.
- Quench Tanks: 1 unit, for controlled quenching operations.
- Tempering Furnaces: 1 unit, for stress relief and hardness adjustment.
- Automation:Automatic loading, temperature curve control, atmosphere monitoring.
Grinding Station Equipment Configuration
- Precision Grinding Machines: 3-4 units, for cutting edge and surface grinding.
- Flute Grinding Machines: 2 units, for precise flute geometry.
- End Grinding Machines: 1 unit, for end face accuracy.
- Automation: Automatic dressing, in-process measurement, adaptive grinding.
Coating Station Equipment Configuration
- PVD Coating Systems: 1 unit, for TiN, TiAlN, and other hard coatings.
- CVD Coating Systems: 1 unit, for specialized coatings.
- Coating Thickness Gauges: For quality control and verification.
- Automation: Automatic loading, process control, quality monitoring.
Production Flow And Material Handling
- Material Flow: Raw steel bars/carbide blanks → Cutting → Machining → Heat treatment → Grinding → Coating → Testing → Packaging.
- Handling: Conveyor systems, robotic handling, automated transfer between stations.
- Protection: Edge guards, non-marring supports, corrosion-preventive handling.
