Bucket Tooth Manufacturing Solutions
Bucket teeth, adapters and pins work in highly abrasive, impact‑loaded environments. Achieving the right hardness–toughness balance, precise fit with adapters, and durable hardfacing is essential to penetration efficiency and service life.
Common Customer Challenges
- Trade‑off between wear resistance and impact toughness; tip spalling vs. fast abrasion.
- Heat‑treat distortion and non‑uniform case depth causing poor fit and early failures.
- Dimensional consistency across molds/dies; interchangeability with OEM profiles.
- Hardfacing dilution/cracking and bond strength; spatter/porosity defects
- Coating/painting adhesion and salt‑spray resistance for storage and logistics
- Mixed models, fast delivery and high OEE requirements with rigorous traceability
Manufacturing Solutions
Cast High‑Manganese/Alloy Teeth
- Technical Points: Controlled chemistry, solution treatment/aging, work‑hardening surface behavior, dimensional stability.
- Process Route: Sand casting → Heat treatment → Gate/risers removal → Precision machining of fit faces → Hardfacing/coat → Inspection.
- Success Case: 5‑ton excavator tooth, hardness 46–52 HRC equivalent (work‑hardened), life +35% vs. prior gen.
Forged/Alloy Teeth For Heavy Duty
- Technical Points: Grain flow optimization, induction hardening on tip, low‑temperature temper for toughness.
- Process Route: Forging → Heat treat (Q+T/induction tip) → Machining → Hardfacing → Paint/mark.
- Success Case: Mining shovel tooth, impact fracture rate −40%, tip wear rate −22%.
Adapters & Retainer Pins
- Technical Points: Slot and nose geometry accuracy, contact pattern, pin shear strength and corrosion resistance.
- Process Route: Casting/forging → Machining (slots/bosses/holes) → Heat treat → Zinc/coat → Assembly test.
- Success Case: Universal adapter, interchange fit Cpk≥1.67, pin corrosion pass 240 h NSS.
Bucket Tooth Manufacturing Process
Raw Materials And Incoming Materials Inspection
Process step description: Verify steel grades and chemistry (Mn/Cr/Mo/B), dimensions and casting quality; sample hardness and microstructure. Equipment: Optical spectrometer, universal testing machine, CMM, ultrasonic flaw detector, hardness tester, metallographic microscope.
Molding/Casting Or Forging Preparation
- Process step description: Prepare sand molds/cores or forging billets/dies; control gating/risers or grain flow for target properties.
- Equipment: Sand molding line, core shooters, melting furnace, forging hammer/press, temperature monitoring.
Knockout, Cleaning And Rough Finishing
- Process step description: Shakeout, shot‑blast, remove gates/risers or flash, and establish datum faces for machining.
- Equipment: Shakeout line, shot blaster, swing frame grinder, cut‑off saw, reference milling setup.
Heat Treatment And Stress Relief
- Process step description: Apply solution/Q+T or induction hardening to achieve specified hardness/toughness and depth uniformity.
- Equipment: Heat treatment furnace, quench tank, tempering furnace, induction hardening unit, hardness tester.
Precision Machining Of Fit Areas
- Process step description: Machine critical fit faces/slots/holes for adapter and pin engagement; verify interchangeability.

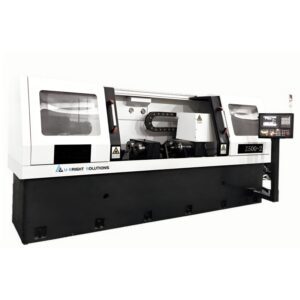

- Equipment: CNC milling machine, machining center, boring/drilling unit, gauges, CMM.
Hardfacing / Surfacing
- Process step description: Deposit wear‑resistant overlays (carbide/complex alloys) with controlled bead patterns and interpass temperatures.
- Equipment: Open‑arc/MCAW surfacing stations, preheat system, pyrometer, weld gauges.
Surface Treatment And Coating
Process step description: Blast to Sa standard, apply primer/epoxy/PU and verify DFT/adhesion and edge coverage. Equipment: Blasting booth, coating booth, curing oven, DFT gauges, adhesion tester.
Assembly And Fit Check (Tooth + Adapter + Pin)
- Process step description: Assemble tooth–adapter–pin sets, verify fit, locking and removal forces per spec.
- Equipment: Assembly fixtures, press/hand tools, force gauges, go/no‑go gauges.
Functional & Wear Testing (As Required)
- Process step description: Conduct impact/wear simulations, hardness mapping and microstructure validation for batches.
- Equipment: Impact/wear test bench, hardness scanner, microscope, data acquisition.
Final Inspection And Documentation
Process step description: Conduct final quality checks, generate inspection reports and prepare documentation for airworthiness certification. Equipment: Visual inspection station, documentation system, barcode printer, quality management software.
Packaging And Shipping
Process step description: Apply protective packaging and shipping preparation to prevent damage during transportation and storage. Equipment: Protective packaging system, shipping fixtures, environmental monitoring, handling equipment.
Data Traceability And Quality Control
- Process step description: Maintain complete traceability of materials, processes and inspections for airworthiness compliance and quality control.
- Equipment: MES, data acquisition system, quality management system, barcode/RFID system, document management.
Bucket Tooth Production Line
Production Line Layout And Configuration
- Overall Layout: Linear/U‑shaped flow—molding/forging → knockout/clean → heat treat → machining → hardfacing → coating → assembly/inspection → packing.
- Workstation Division: Molding & melt; knockout/shot‑blast; heat treatment; machining; surfacing; coating; assembly/inspection; packing.
- Logistic Passage: Main aisle 4–5 m, auxiliary 2.5–3 m; cranes 5–10 t; WIP buffers 3–6 h before heat treat and surfacing.
Equipment Configuration And Automation
- Molding/Foundry: Sand molding line, core shooters, medium‑frequency furnaces, pouring/handling cranes; molding sand control.
- Forging: Hammers/presses (1–3 kt), induction heaters, dies; auto billet feed and temperature control.
- Heat treat: Furnaces with closed‑loop temperature and quench systems; recipe/curve logging.
- Machining: CNC mills, drill/tap centers, jigs/gauges; in‑process probing and tool‑life management.
- Hardfacing: Multiple surfacing cells (open‑arc/MCAW), oscillators, preheat/interpass control; fume extraction.
- Coating: Blasting booths, paint lines, curing ovens; automatic DFT measurement logging.
- Assembly/Test: Dedicated fixtures, force gauges; sampling impact/wear benches.
Production Flow And Material Handling
- Material Flow: Raw steel → molding/forging → knockout/clean → heat treat → machining → hardfacing → coating → assembly/inspection → packing.
- Handling: Overhead cranes, forklifts, AGVs (optional) for cell‑to‑cell transfer; protected racks by tooth family/size.
- Protection: Edge guards and non‑marring saddles; corrosion‑preventive handling post‑coat.
