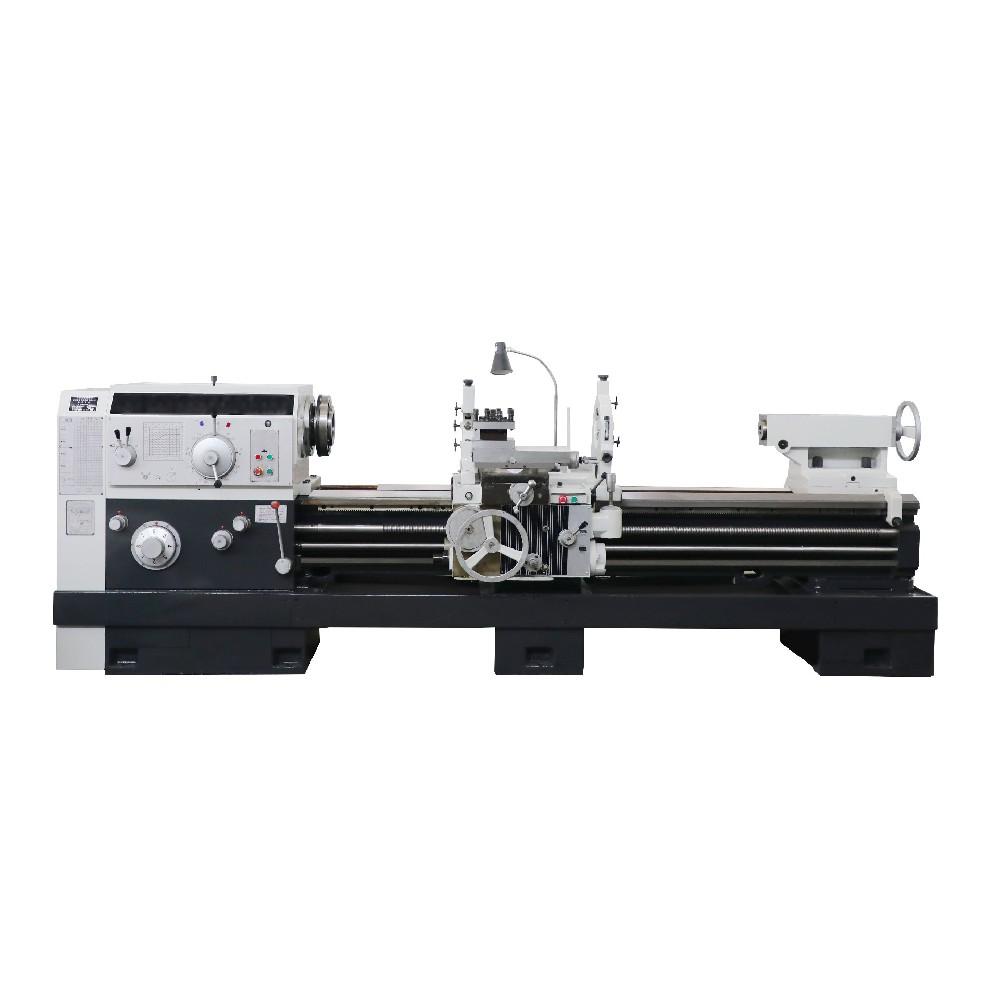

Machine Features

The bedside wall adopts a double-ribbed plate design, with the inner rib shape using a box-type and slanted rib combination structure. The machine’s rigidity is higher than that of typical lathes, providing stable accuracy and enabling heavy-duty cutting.
The cross slide is equipped with a rapid-moving structure and is operated with a single handle for intuitive control. The spindle’s forward and reverse rotation direction and braking are user-selectable, with options for hydraulic control or manual mechanical control.
The bed saddle guideways are made of bonded “TSF” soft band wear-resistant material.
Based on user requirements, the tool post can automatically feed, and the upper tool post can be used independently to turn short conical surfaces. Additionally, the upper tool post, in conjunction with the longitudinal feed, can be used for turning long conical surfaces.

Machine Specifications

ITEM	UNIT	CW6163B/CW6263B	CW6180B/CW6280B	CW6194B/CW6294B
CAPACITIES
Swing over bed	mm	630	800	940
Swing over carriage	mm	350	520	660
Max.length of workpiece	mm	750 1000 1500 2000 3000 4000 5000 6000 8000 10000
Max.turning length	mm	600 850 1350 1850 2850 3850 4850 5850 7850 9850
Swing over gap	mm	830	1000	1140
Effective widthof gap	mm	300
Pan of guideway	mm	550
SPINDLE
Spindle nose		C11
Spindle bore	mm	100
Taper hole of spindle		1:20/120
Range of spindle speeds	r/min	7.5~1000	6~800	6~800
No.of spindle speeds		18
FEED
Longitudinal and cross	r/min	64;0.1~24.32
Cross/long longitudinal feed		1/2
Screw pitch of leadscrew	mm	12
No. and range of metric thread	mm	50;1~240
No. and range of inch thread		26;14~1
No. and range of module thread	mm	53;0.5~120
No. and range of dia. thread		24;28~1
Rapid traverse speed	mm/min	4000
TURRET
Max . travel of cross slide	mm	440	540	570
Max . travel of top slide	mm	200
Section of tool shank	mm	32（192×192）
TAILSTOCK
Dia. of tailstock	mm	100
Travel of tailstock quill	mm	250
Taper hole of tailstock quill		mores 5
OTHERS
Main motor power	kw	11
Length	mm	2958 3275 3725 4225 5225 6275 7355 8355 10275 12275
Width	mm	1393	1473	1430
Height	mm	1537	1622	1690
