Steering System Manufacturing Solutions
The steering system emphasizes accuracy, NVH, reliability and consistent steering feel; covers end-to-end manufacturing and testing of electric power steering, rack gears, steering columns/intermediate shafts, hydraulic pump and valves, etc.
Common Customer Challenges
- Tight GD&T on rack, pinion, column shafts and housings; positional and coaxial tolerances difficult to stabilize in volume.
- NVH targets require micro-geometry quality, surface finish control and backlash consistency.
- Heat treatment and hardening induce distortion; straightness and runout control are challenging.
- Sealing and cleanliness for hydraulic/EPAS housings; leak and particle limits must be guaranteed.
- Mixed-model production with rapid changeovers while keeping OEE and cost targets.
Manufacturing Solutions
Rack & Pinion Assemblies
- Technical Points: Gear profile/lead accuracy, case depth control, backlash and contact pattern tuning, surface integrity.
- Process Route: Soft cutting → Heat treatment/induction hardening → Gear grinding/finish hobbing → Backlash set → NVH check.
- Success Case: Passenger car rack set, DIN 7 gear accuracy, case depth 1.0–1.2 mm, torque ripple −22%, FPY 98.5%.

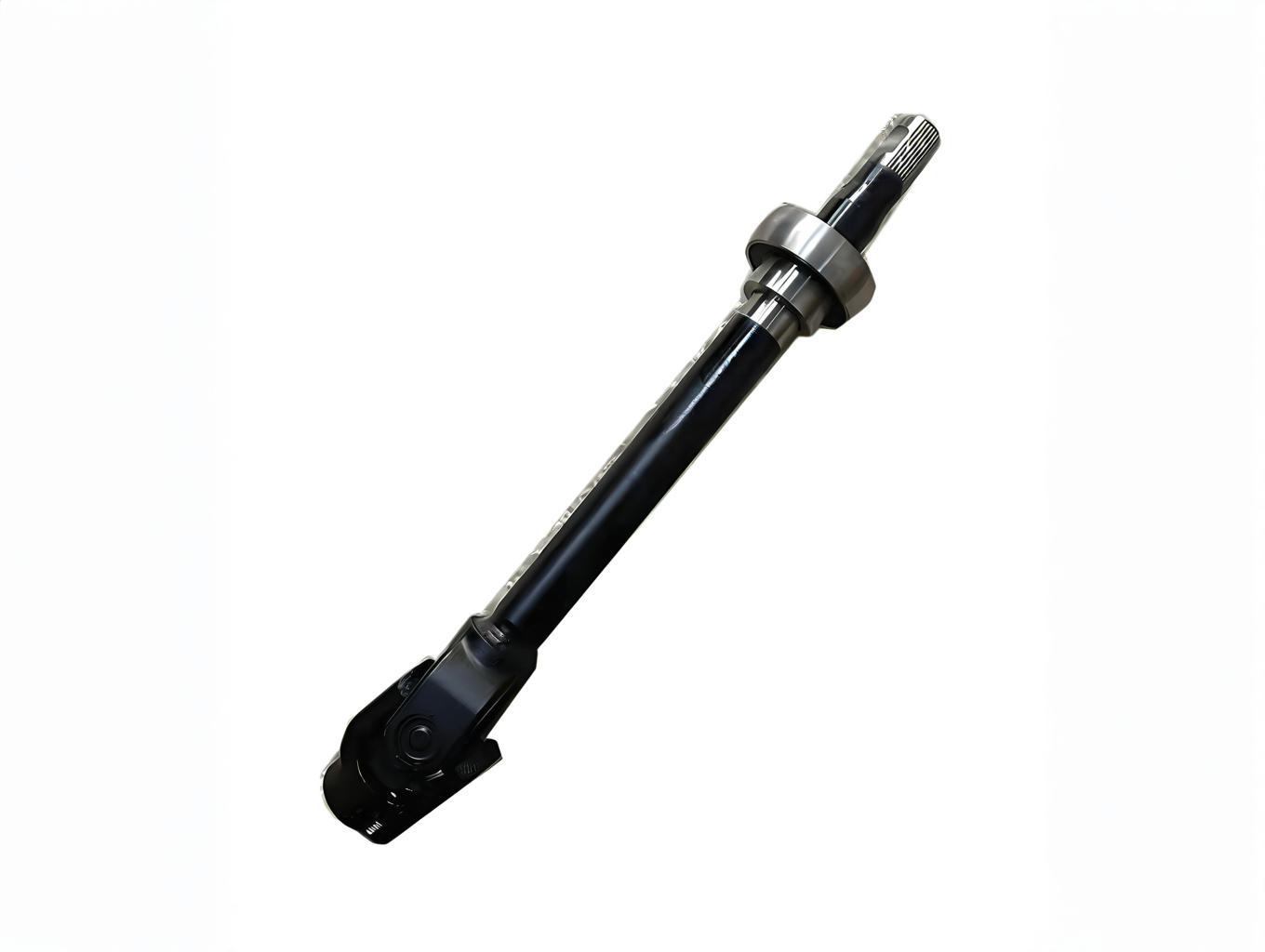

Steering Columns & Intermediate Shafts
- Technical Points: Coaxiality/runout control, spline fit, collapse/energy‑absorbing features, bearing press fits.
- Process Route: Turning/milling → Spline broaching/rolling → Heat treat → OD/ID grind → Assembly fit check.
- Success Case: Telescopic column, runout ≤0.02 mm, press‑fit Cpk≥1.67, collapse force window within spec across −35–85°C.

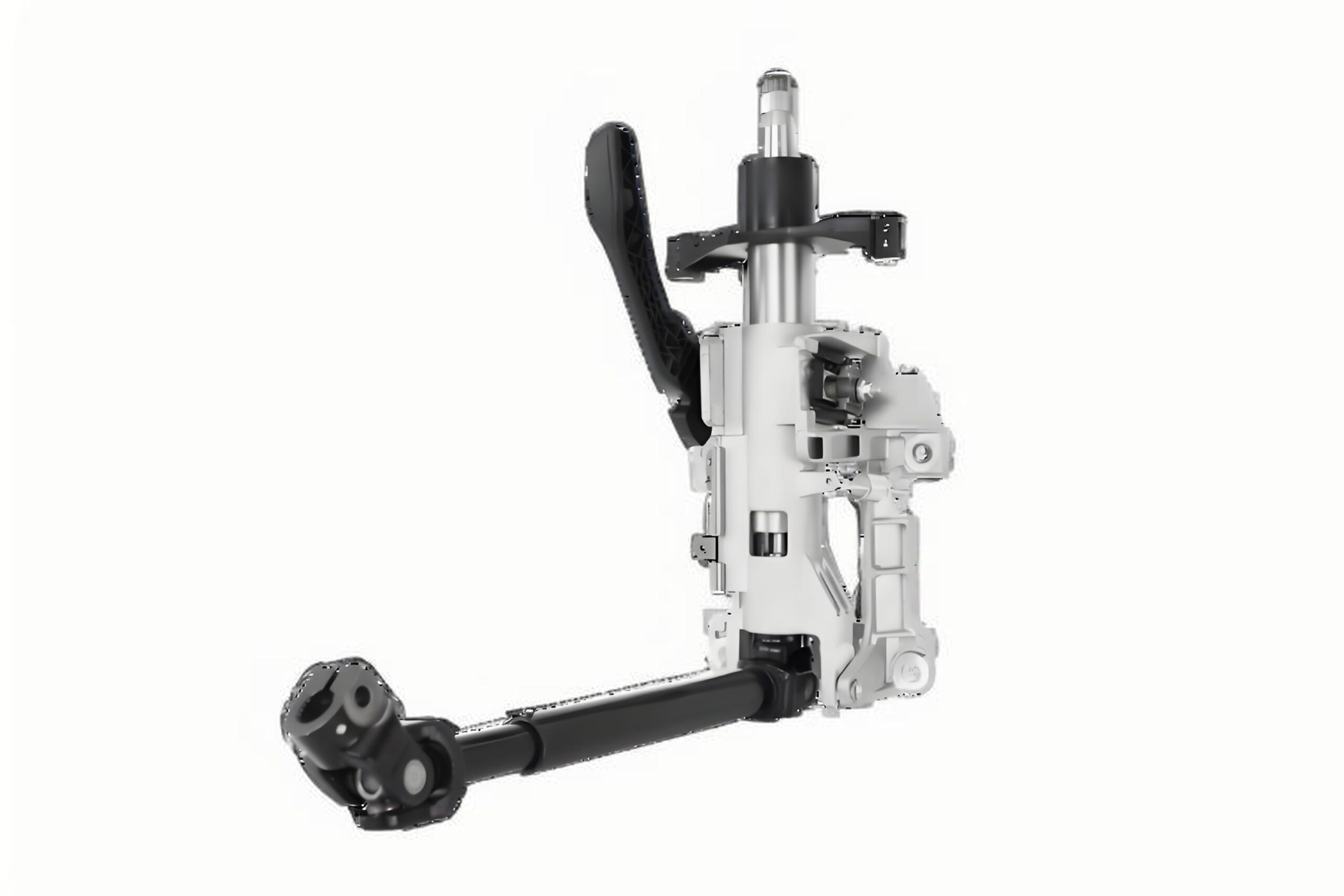

EPAS/EPS Systems
- Technical Points: Ball screw/rack surface finish, motor/ECU integration, torque sensor calibration, end‑of‑line software flashing.
- Process Route: Precision machining → Surface finishing → Clean assembly in controlled environment → EOL calibration/NVH test.
- Success Case: C‑segment EPAS, lead error ±6 μm/300 mm on screw/rack, assist map repeatability ≤±3%, rework −40%.

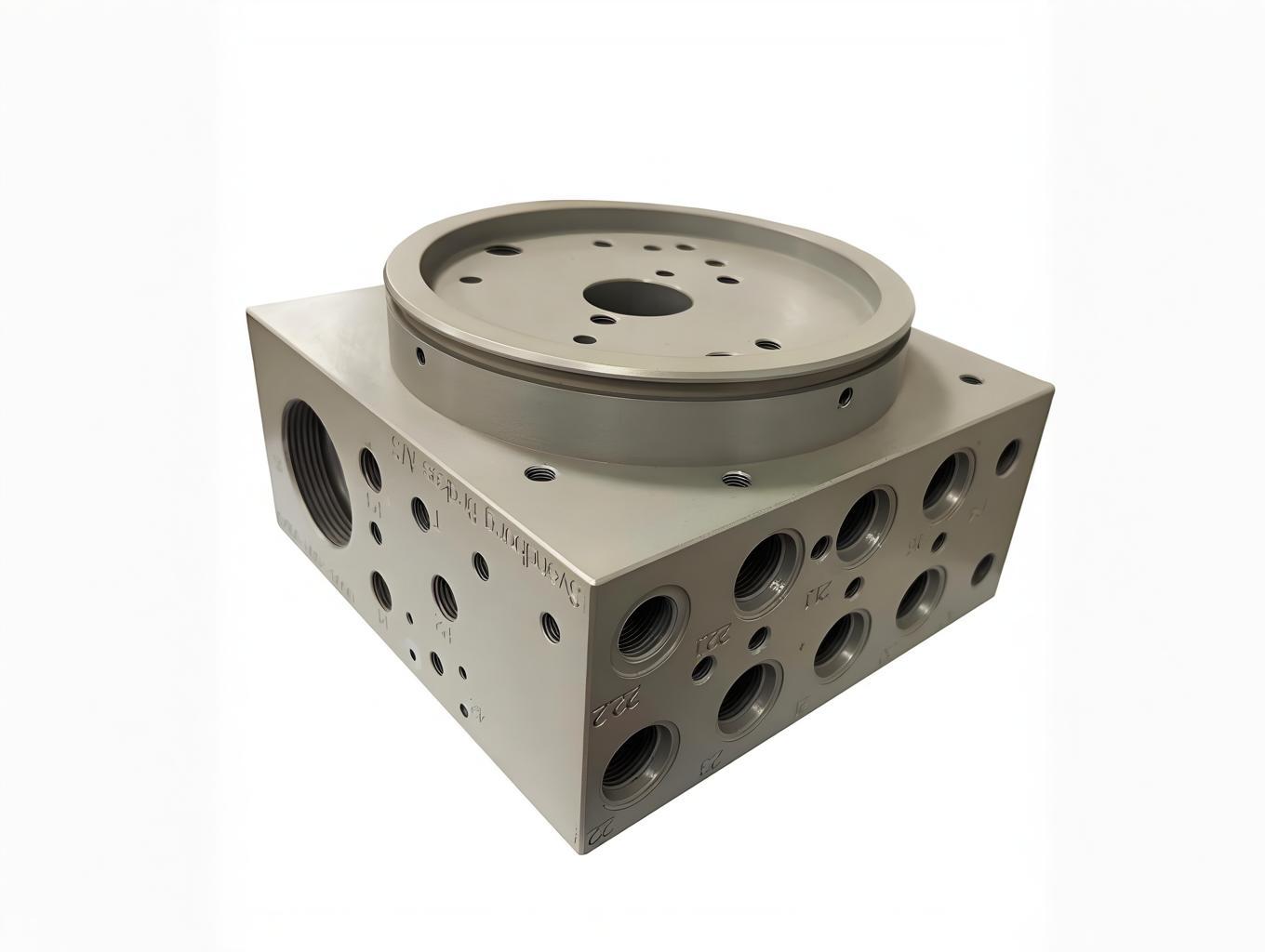

Hydraulic Steering Pump And Valve Body (HPS)
- Technical Points: Precision bores and spool valves, sealing surfaces, leak and flow performance, cleanliness control to ISO 16232.
- Process Route: Jig boring/honing → Surface finishing/lapping → Leak and flow test (100%) → Cleanliness verification → Endurance test sampling.
- Success Case: Heavy-duty truck valve blocks reached leak pass rate 99.8%, residual contamination ≤150 mg/1000 cm², field failures −41%.
Steering System Manufacturing Process
Raw Materials And Incoming Materials Inspection
Process step description: Verify aluminum/titanium alloy grade, thickness, surface quality and heat treat condition; sample chemistry and mechanical properties. Equipment: Optical spectrometer, universal testing machine, CMM, ultrasonic thickness gauge, hardness tester, metallographic microscope.
Benchmarking And Roughing
Process step description: Build datums and rough‑turn/mill bores/teeth with low‑deformation fixturing. Equipment: CNC lathe, machining center, mill‑turn center, precision fixtures.
Spline/Gear Soft Cutting
- Process step description: Form splines and gear teeth prior to hardening to required stock allowances.
- Equipment: Broaching machine, gear hobbing/shaping machine, keyseater, tool grinder.
Heat Treatment And Distortion Control
- Process step description: Apply solution treatment, aging or stress relief to achieve target mechanical properties and dimensional stability.
- Equipment: Heat treatment furnace, aging furnace, stress relief furnace, temperature monitoring system, atmosphere control.
Precision Grinding And Gear Finishing
- Process step description: Grind OD/ID/bearing seats and gear flanks; finish hone/lap as needed to meet GD&T and surface targets.
- Equipment: OD/ID grinder, gear grinding machine, honing/lapping machine, CMM, surface roughness tester.
Surface Engineering And Finishing
- Process step description: Apply shot peening, rolling burnish or coatings to improve fatigue and wear; polish critical tracks.
- Equipment: Shot peening machine, roller burnishing unit, polishing/finishing machine, thickness gauge.
Clean Assembly And Pre‑Set
- Process step description: Assemble columns/racks/EPAS modules in controlled environment; set preload/backlash and torque windows.
- Equipment: Clean benches, assembly fixtures, torque/angle tools, preload/backlash gauges.
Functional, Leak And NVH Testing
- Process step description: Run EOL tests—torque overlay, assist maps, leak/pressure (if hydraulic), noise/vibration and durability cycles.
- Equipment: EOL test rigs, torque/angle sensors, leak/pressure benches, NVH chambers, data acquisition.
Final Inspection And Documentation
Process step description: Conduct final quality checks, generate inspection reports and prepare documentation for airworthiness certification. Equipment: Visual inspection station, documentation system, barcode printer, quality management software.
Packaging And Shipping
Process step description: Apply protective packaging and shipping preparation to prevent damage during transportation and storage. Equipment: Protective packaging system, shipping fixtures, environmental monitoring, handling equipment.
Data Traceability And Quality Control
- Process step description: Maintain complete traceability of materials, processes and inspections for airworthiness compliance and quality control.
- Equipment: MES, data acquisition system, quality management system, barcode/RFID system, document management.
Steering System Production Line
Production Line Layout And Configuration
- Overall Layout: Linear/U‑shaped flow by process to minimize handling and enable parallel cells for racks, columns and EPAS.
- Workstation Division: Material prep → Machining (turn/mill/gear) → Heat treat → Grinding/finishing → Surface engineering → Clean assembly → EOL testing → Packing.
- Logistic Passage: Main aisle 3.5–4.5 m, auxiliary 2.0–2.5 m; AGVs/tuggers connect machining to clean assembly; buffers 2–4 h before EOL.
Equipment Configuration And Automation
- Machining: CNC lathes, mill‑turns, gear hobbing/shaping, spline broaching/rolling; in‑process probing and tool life management.
- Heat treat: Carburizing/induction cells with closed‑loop temperature and case depth control.
- Grinding/finishing: OD/ID and gear grinders, superfinishing; automatic dressing and in‑process gauging.
- Clean assembly: ISO‑class controlled benches, torque/angle tools with digital traceability, vision‑guided presses..
- Testing: EOL functional/NVH/leak benches with automatic result upload; software flashing/calibration for EPAS.
- Automation: Robot/gantry loaders, fixture RFID for recipe call, barcode traveler, inline SPC dashboards.
Production Flow And Material Handling
- Material Flow: Raw stock → Soft cutting → Heat treat → Grinding/finishing → Surface engineering → Clean assembly → EOL test → Packing.
- Handling: AGVs/AMRs and conveyors from machining to assembly; dunnage/kitting carts by variant; FIFO lanes per model.
- Protection: Cleanliness control with sealed totes; corrosion‑preventive handling for finished shafts/gears.
