Train Wheels Manufacturing Solutions
Common Customer Challenges
- Material Uniformity: Achieving consistent microstructure and mechanical properties throughout the wheel for reliable performance and safety.
- Dimensional Precision: Maintaining tight tolerances on wheel diameter, tread profile, flange geometry, and bore dimensions for proper wheel-rail interaction.
- Heat Treatment Control: Ensuring uniform hardness distribution and proper toughness balance for wear resistance and fatigue life.
- Surface Quality: Achieving defect-free surfaces with proper roughness and residual stress for fatigue resistance and crack prevention.
- Non-Destructive Testing: Detecting internal defects, inclusions, and discontinuities to ensure structural integrity and safety.
- Traceability Requirements: Maintaining complete material traceability and manufacturing records for safety certification and lifecycle management.
Manufacturing Solutions

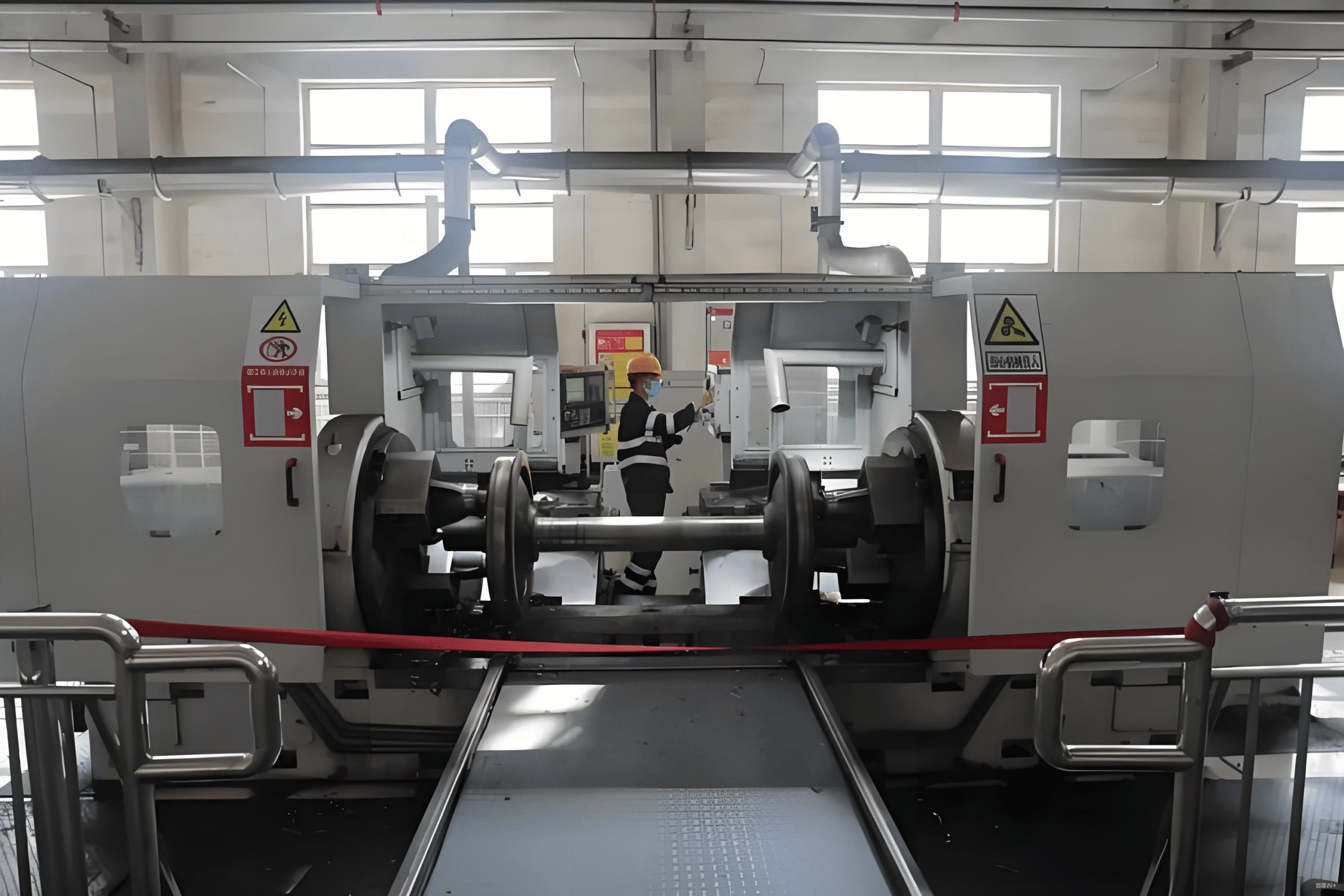

Passenger Car Wheels
- Technical Points: Fine-grain microstructure, balanced hardness, noise reduction design, fatigue resistance optimization.
- Process Route: Forging → Heat treatment → Rough machining → Finish machining → Ultrasonic testing → Final inspection.
- Success Case: High-speed passenger wheels, speed rating 350 km/h, wheel life 1.2 million km, dimensional accuracy ±0.2mm.

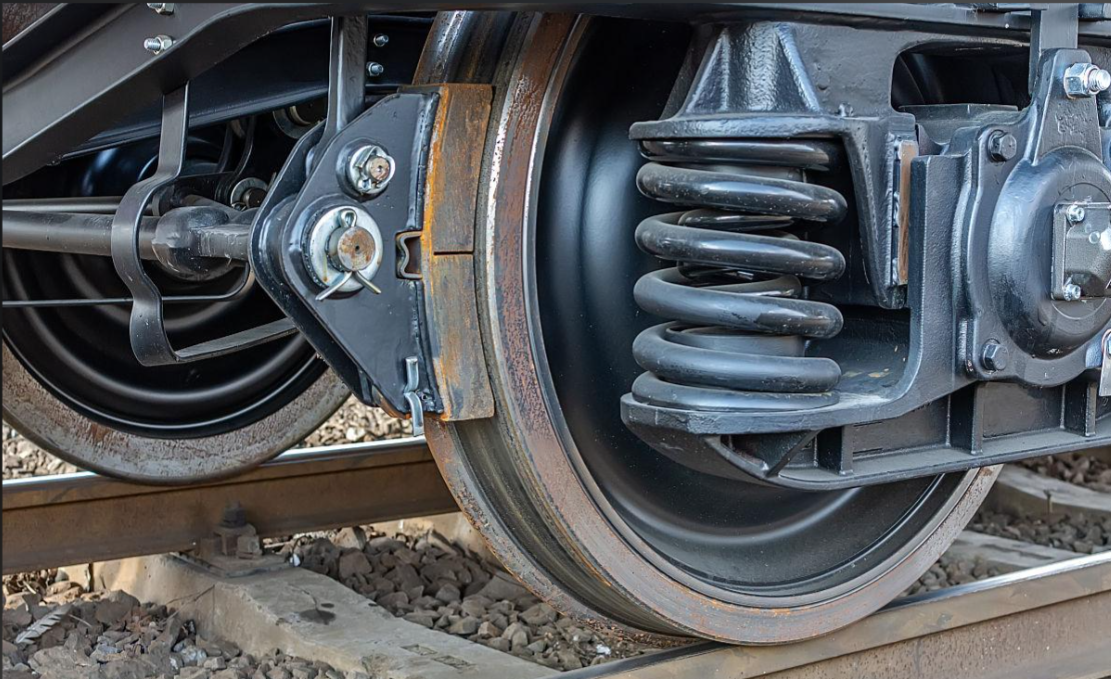

Freight Car Wheels
- Technical Points: High load capacity, wear resistance, impact toughness, heavy-duty design optimization.
- Process Route: Forging → Heat treatment → Machining → Testing → Marking → Inspection.
- Success Case: Heavy-haul freight wheels, load capacity 35 tons/axle, wear life 800,000 km, impact resistance improvement 40%.

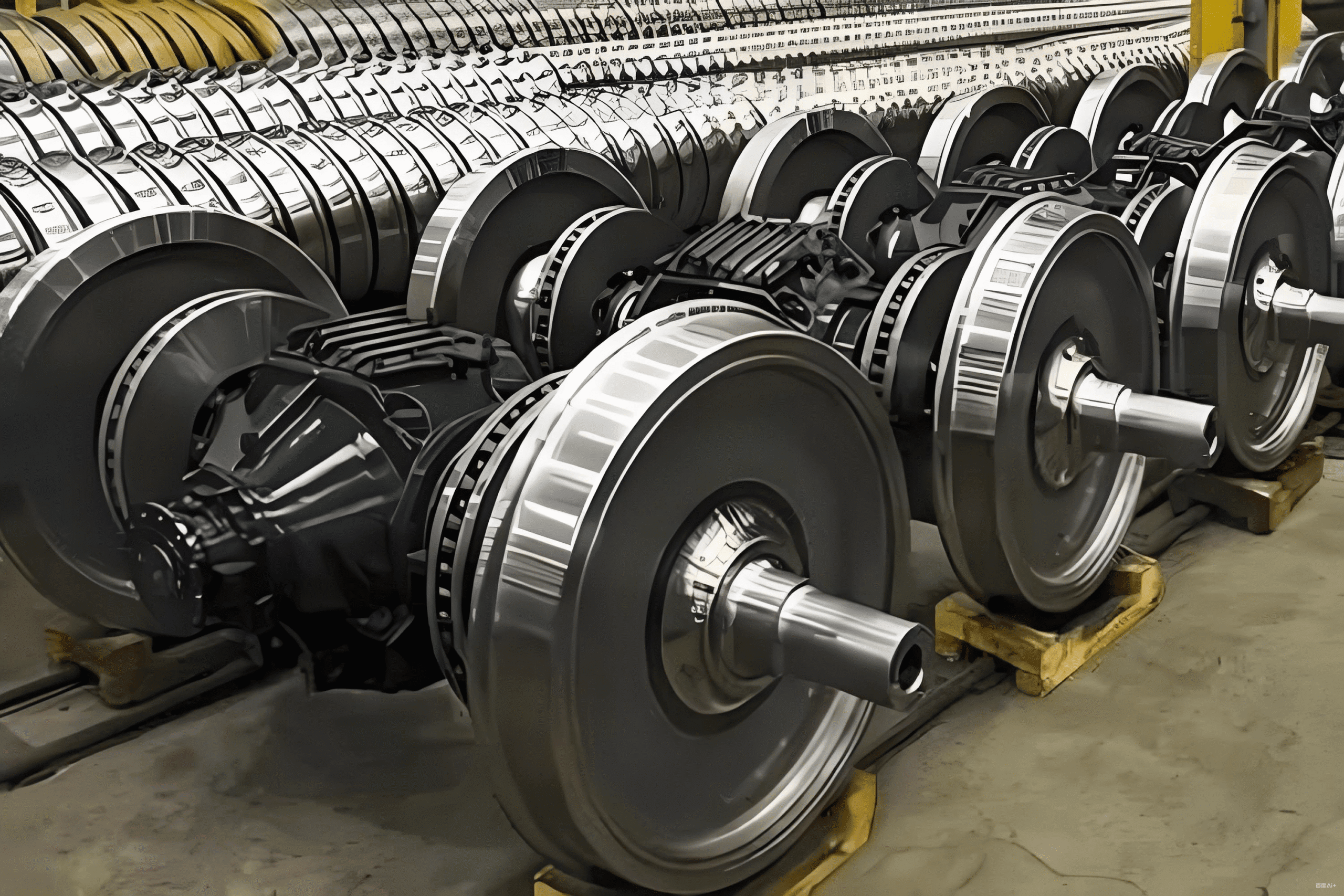

Locomotive Wheels
- Technical Points: High traction capability, thermal stability, fatigue resistance, precision bore machining.
- Process Route: Forging → Heat treatment → Precision machining → Testing → Assembly → Validation.
- Success Case: Locomotive drive wheels, traction force 400 kN, thermal stability ±2%, wheel life improvement 30%.
Metro And Light Rail Wheels
- Technical Points: Noise reduction, smooth operation, compact design, corrosion resistance.
- Process Route: Forging → Heat treatment → Machining → Locking mechanism → Assembly → Testing.
- Success Case: Vise-grip pliers, locking force 2000N, jaw parallelism ≤0.02mm, reliable release mechanism.
Train Axles Manufacturing Process
Raw Materials And Incoming Materials Inspection
- Process step description: Verify steel grade (typically EN13262, AAR M-107/M-208), chemistry, mechanical properties, and internal quality through sampling and testing.
- Equipment: Optical spectrometer, universal testing machine, ultrasonic flaw detector, impact tester, metallographic microscope.
Billet Heating And Preparation
- Process step description: Heat steel billets uniformly to forging temperature (1150-1250°C) with controlled heating rate and soaking time.
- Equipment: Gas or electric heating furnace, temperature recorder, pyrometer, automatic billet handling system.
Forging And Forming
- Process step description: Press or hammer forge heated billets into rough wheel shape with proper grain flow and density.
- Equipment: Hydraulic press (5000-16000 tons), forging hammer, forging dies, manipulator, thermal imaging camera.
Heat Treatment And Hardening
- Process step description: Apply quenching and tempering to achieve target hardness and toughness properties.
- Equipment: Heat treatment furnace, quench tank, tempering furnace, hardness tester, metallographic microscope.
Rough Machining
- Process step description: Machine basic wheel geometry including tread, flange, and bore to near-final dimensions removing forging scale and irregularities.
- Equipment: CNC wheel lathe, vertical lathe, machining center, cutting tools, chip removal system.
Stress Relief And Stabilization
- Process step description: Apply stress relief heat treatment to eliminate residual stresses from machining and improve dimensional stability.
- Equipment: Stress relief furnace, temperature control system, cooling system.
Precision Machining And Finishing
- Process step description: Machine final wheel profile, tread contour, flange geometry, and bore to precise dimensions and surface finish.
- Equipment: CNC precision wheel lathe, boring machine, grinding machine, surface roughness tester, CMM.
Ultrasonic Testing And NDT
- Process step description: Perform ultrasonic testing to detect internal defects, inclusions, cracks, and discontinuities throughout the wheel.
- Equipment: Ultrasonic flaw detector, immersion tank, automated scanning system, magnetic particle inspection equipment.
Surface Treatment And Finishing
- Process step description: Apply surface treatments (shot peening, coating) for corrosion protection and fatigue resistance improvement.
- Equipment: Shot peening machine, coating equipment, surface inspection tools.
Dimensional Inspection And Verification
- Process step description: Measure all critical dimensions including diameter, tread profile, flange height, bore diameter, and run-out using precision instruments.
- Equipment: CMM, wheel diameter gauge, profile gauge, bore gauge, run-out gauge, digital micrometers.
Marking And Identification
- Process step description: Permanently mark wheels with heat number, manufacturing date, wheel specification, and traceability codes.
- Equipment: Laser marking machine, stamp marking equipment, dot peen marker, barcode system.
Final Inspection And Documentation
Process step description: Conduct final quality checks, generate inspection reports and prepare documentation for airworthiness certification. Equipment: Visual inspection station, documentation system, barcode printer, quality management software.
Packaging And Shipping
Process step description: Apply protective packaging and shipping preparation to prevent damage during transportation and storage. Equipment: Protective packaging system, shipping fixtures, environmental monitoring, handling equipment.
Data Traceability And Quality Control
- Process step description: Maintain complete traceability of materials, processes and inspections for airworthiness compliance and quality control.
- Equipment: MES, data acquisition system, quality management system, barcode/RFID system, document management.
Train Axles Production Line
Production Line Layout And Configuration
- Overall Layout: U-shaped or linear layout optimized for heavy component handling with overhead cranes and efficient material flow.
- Workstation Division: Material storage → Heating → Forging → Heat treatment → Rough machining → Finish machining → Testing → Inspection → Storage.
- Logistic Passage: Main aisle 5-6 m wide for crane access, auxiliary aisles 3-4 m; heavy-duty conveyors and crane systems for wheel handling.
- Buffer Zone Setup: Buffer storage (4-8 hours WIP) between forging, heat treatment, and machining to accommodate batch processing and cooling cycles.
Equipment Configuration And Automation
Forging Station Equipment Configuration
- Forging Hammers: 1-2 units, capacity 5000-16000 tons, for wheel forging operations.
- Hydraulic Presses: 2 units, capacity 10-20 tons/hour, temperature control ±10°C.
- Induction Heaters: For billet handling and positioning during forging.
- Automation: Automated temperature monitoring, press control, die changing systems.
Heat Treatment Station Equipment Configuration
- Heat Treatment Furnaces: 2-3 units, capacity 2m×2m×3m, temperature control ±5°C.
- Quench Tanks: 2 units, for controlled quenching operations with agitation systems.
- Tempering Furnaces: 2 units, for stress relief and property optimization.
- Automation:Automatic loading/unloading, temperature curve control, atmosphere monitoring.
Precision Machining Station Equipment Configuration
- CNC Wheel Lathes: 3-4 units, for rough and finish turning operations.
- Boring Machines: 2 units, for precision bore machining.
- Grinding Machines: 1-2 units, for final surface finishing.
- Automation: Automatic tool changing, in-process measurement, adaptive machining.
Inspection Station Equipment Configuration
- CMM Systems: 1 unit, large-capacity for dimensional verification.
- Profile Gauges: Multiple sets for tread and flange profile verification.
- Diameter Gauges: For precise wheel diameter measurement.
- Automation: Automated measurement sequences, data analysis, reporting.
Production Flow And Material Handling
- Material Flow: Raw steel → Heating → Forging → Heat treatment → Rough machining → Finish machining → Testing → Inspection → Storage/Shipping.
- Handling: Overhead cranes (10-30 ton capacity), heavy-duty conveyors, automated transfer systems for inter-station movement.
- Protection: Padded supports, controlled handling procedures, rust prevention measures.
