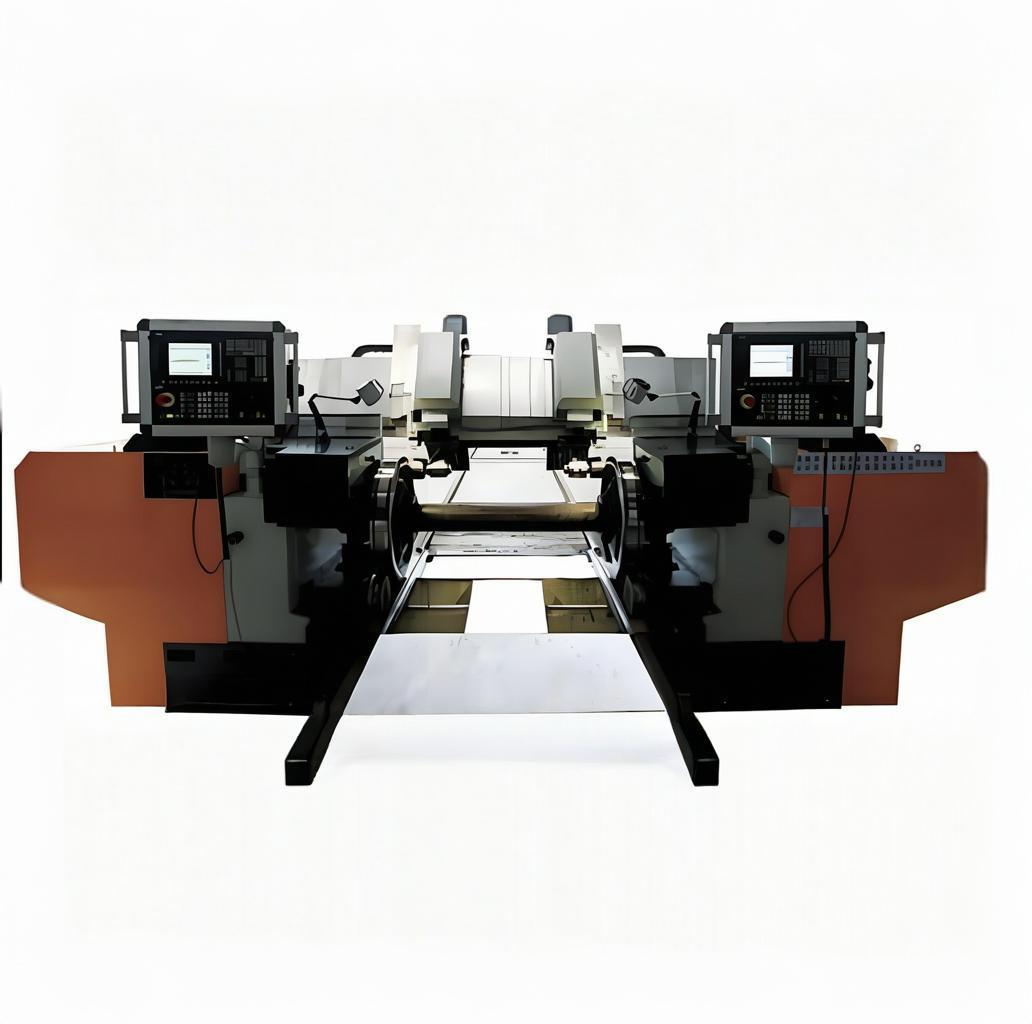

MCK80 Series Gate-Type Friction Drive Wheel Turning Lathe

MCK80 Series Gate-Type Friction Drive Wheel Turning Lathe

MCK8010/H machine mainly used for machining and repairing the wheel flange and tread of RD, RE and RF types of wheelset on wagon with single bearing (without opening bearing end cover) which the track gauge is 1435mm on railway locomotive.

Contact Us
Category
MCK8011 machine applies to all kinds of current CRH high speed trains, which can be used for machining the wheel tread profile of wheelset as well as the wheel inside and outside surfaces and axle disc (inside/outside surfaces) without disassembling brake disc and gear box after dropping the wheelset, the wheelset has axle-load and wheel-load brake discs under the condition that without dismounting the bearing and axle box (but the axle box cover can be opened). For example, the machining and repairing operations can be carried out on the brake disc and wheel flange surfaces of the wheelset on high speed trains and trailers.
ParametersMCK8010/HMCK8011
Track gauge (mm)14351435
Range of wheelset axial length (mm)2000 ~ 23002000 ~ 2610
Range of machining diameter of wheel tread (mm)φ730 ~ φ960φ600 ~ φ1100
Range of machining diameter of brake disc (mm)–φ350 ~ φ680
Steps and range of spindle rotational speed – StepsSteplessStepless
Steps and range of spindle rotational speed – Range (r/min)10 ~ 1255 ~ 375
Steps and range of tool post feed – StepSteplessStepless
Steps and range of tool post feed – Range of X/Z axes (mm/r)0.05 ~ 20.1 ~ 2
Tool post fast movement (mm/min) – X/Z axes20006000
Max. workpiece weight (t)1.52.5
Power of main motor (kW)2 × 18.52 × 18.5 2 × 37
Machine overall dimension (L×W×H) (mm)5500×2200×26006800×2800×3800
Production efficiency (wheelset/shift)12≤ 12
