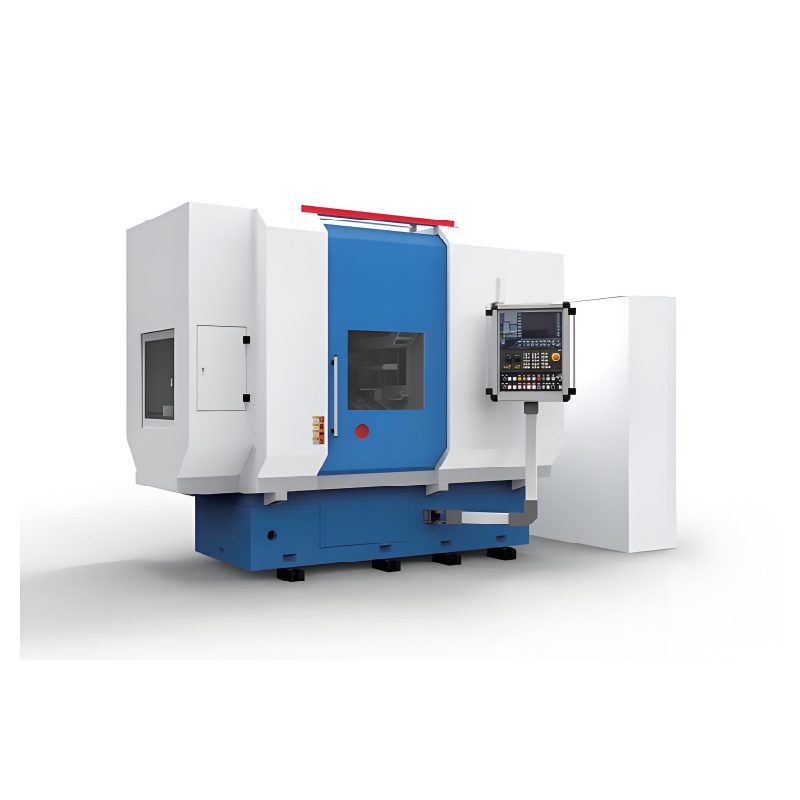

Machine Features
The maximum linear speed of the grinding wheel is 80m/s, the maximum torque of the workpiece spindle is 1000Nm, the gear grinding accuracy meets National Standard Grade 3, with ffa ≤ 0.002mm and CPK ≥ 1.67 (span roll distance of 0.06). The machine tool can achieve automatic clamping, automatic tool setting, automatic grinding, and automatic dressing. It is equipped with functions such as tooth surface anti-torsion, universal dressing, mirror grinding, and cycloid grinding, satisfying the requirements for transmission precision, noise reduction, and enhancement of transmission efficiency in gear transmission.
➡️Machine Specifications
| Technical Parameters | |
| Workpiece Diameter | Φ20 ~ Φ360 mm |
| Workpiece Module | 1 ~ 8 mm |
| Number of Workpiece Teeth | 9 ~ 360 |
| Workpiece Helix Angle Range | ±45° |
| Maximum Straight Tooth Width | 300 mm |
