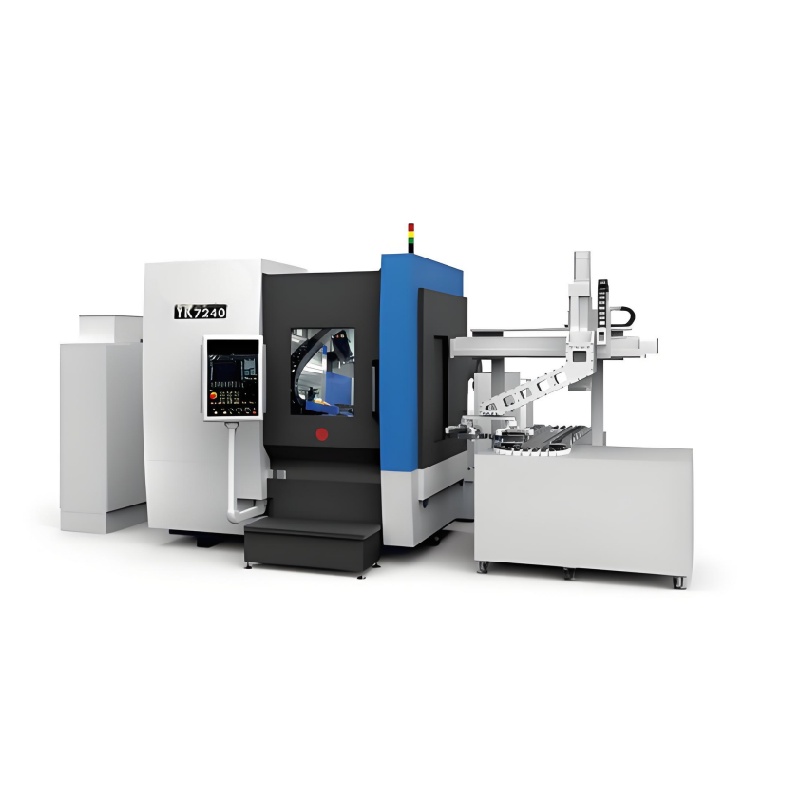

YK7240 CNC Gear Grinding Machine

YK7240 CNC Gear Grinding Machine

The machine tool adopts the principle of continuous generating between the involute worm grinding wheel and the workpiece to perform conjugate transmission grinding on the workpiece. It is suitable for the precision grinding of large – batch involute cylindrical gears in industries such as automobiles and engineering machinery.
Contact Us
Category

Machine Features

The numerical control system selects the SIEMENS 840DSL system, and both the servo and drive systems select products of SIEMENS. It can realize the ten – axis five – linkage grinding function.

➡️Machine Specifications

Technical Parameters
Workpiece DiameterΦ20 ~ Φ400 mm
Workpiece Module1 ~ 6 mm
Number of Workpiece Teeth8 ~ 400
Workpiece Pressure Angle15° ~ 25°
Workpiece Helix Angle±45°
Maximum Straight Tooth Width300 mm
Maximum Workpiece Weight (Including Fixture)120 kg
