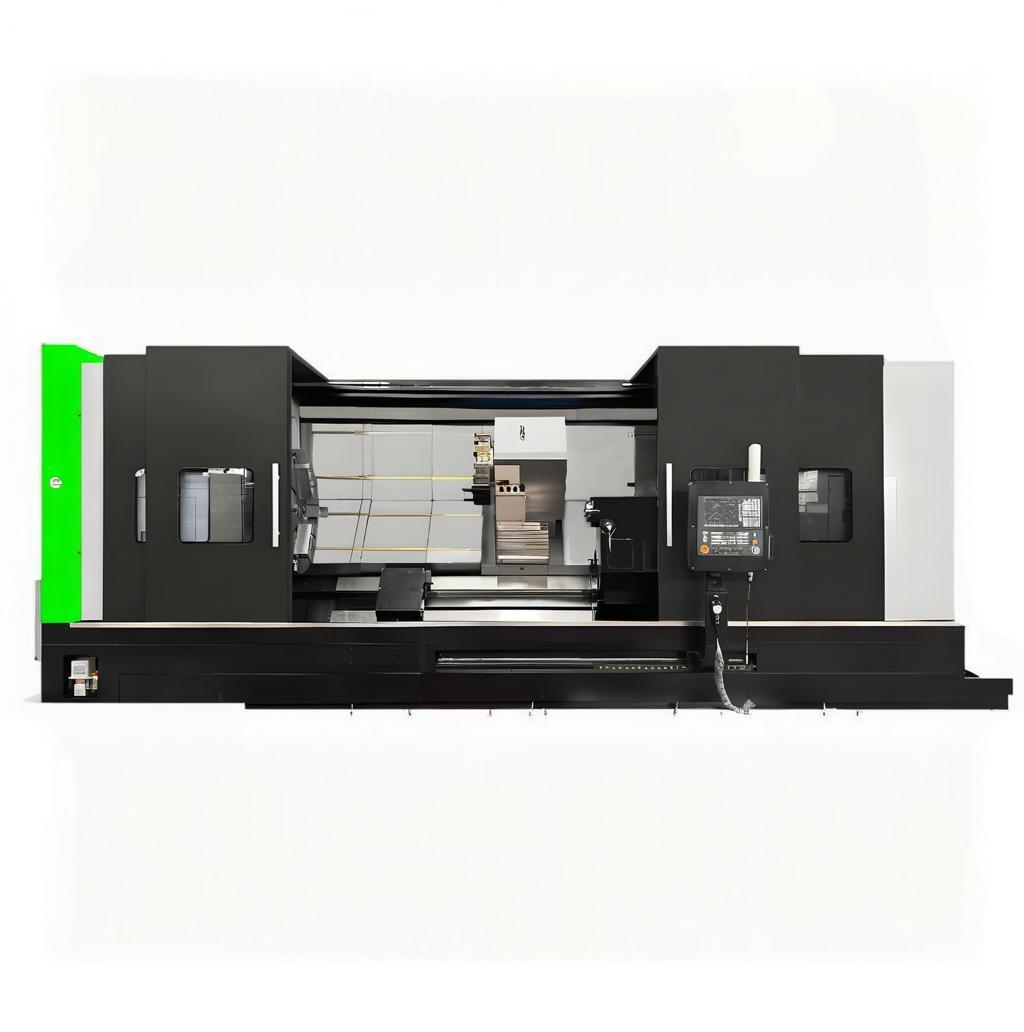

- TCK1000 machines are large horizontal turning centers ideal for machining pipes, valves and flanges used in oil and gas industry, hydraulic parts used in construction equipment, and also complex parts used in the aircraft and ship building industries.

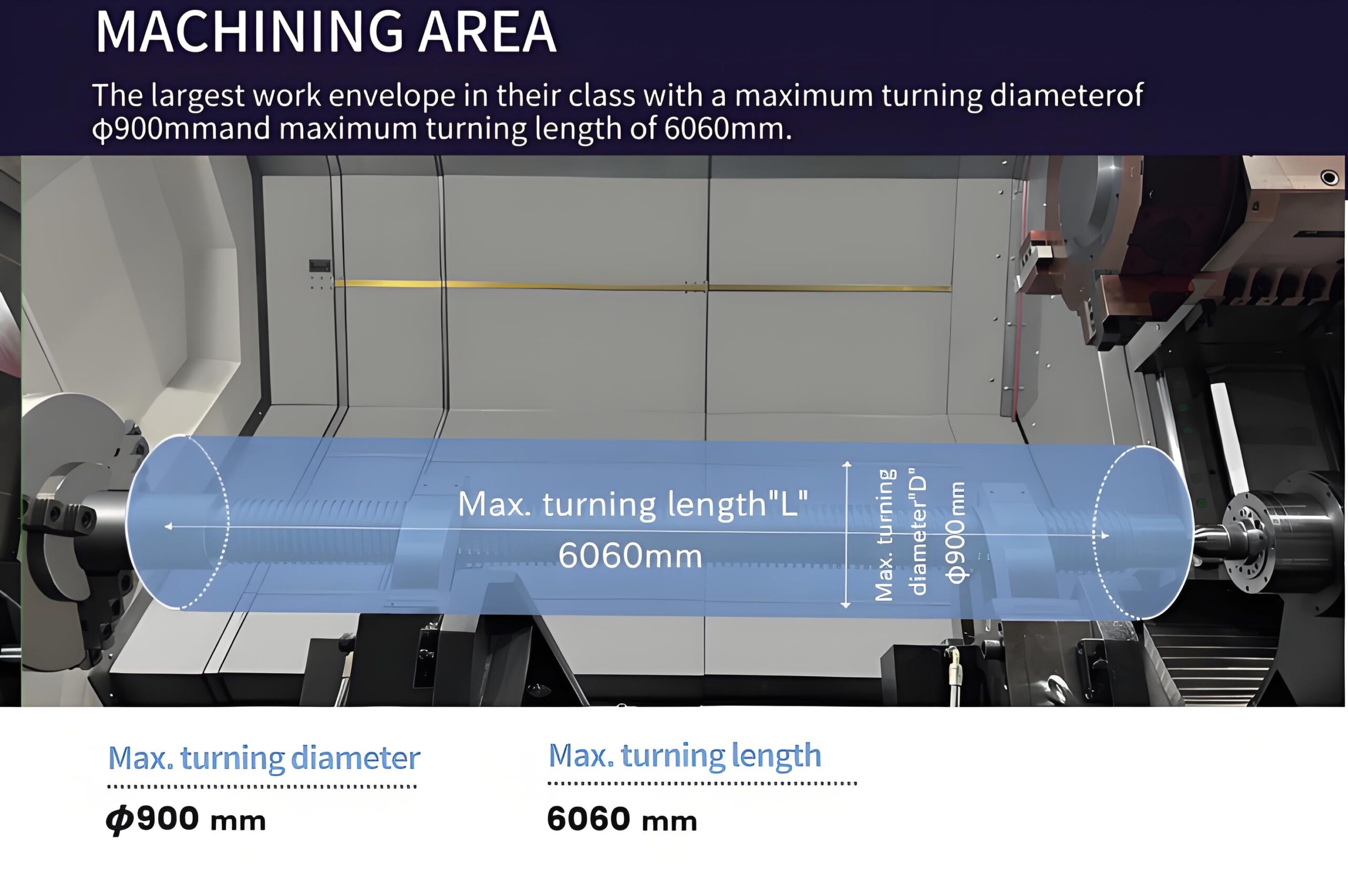

- Maximum turning diameters and lengths are ∅900mm and 6060mm respectively, which are the highest in their class. The slant bed design allows easy chip disposal.
Product advantage
SINGLE SETUP FOR MACHINING LARGE COMPLEX PARTS

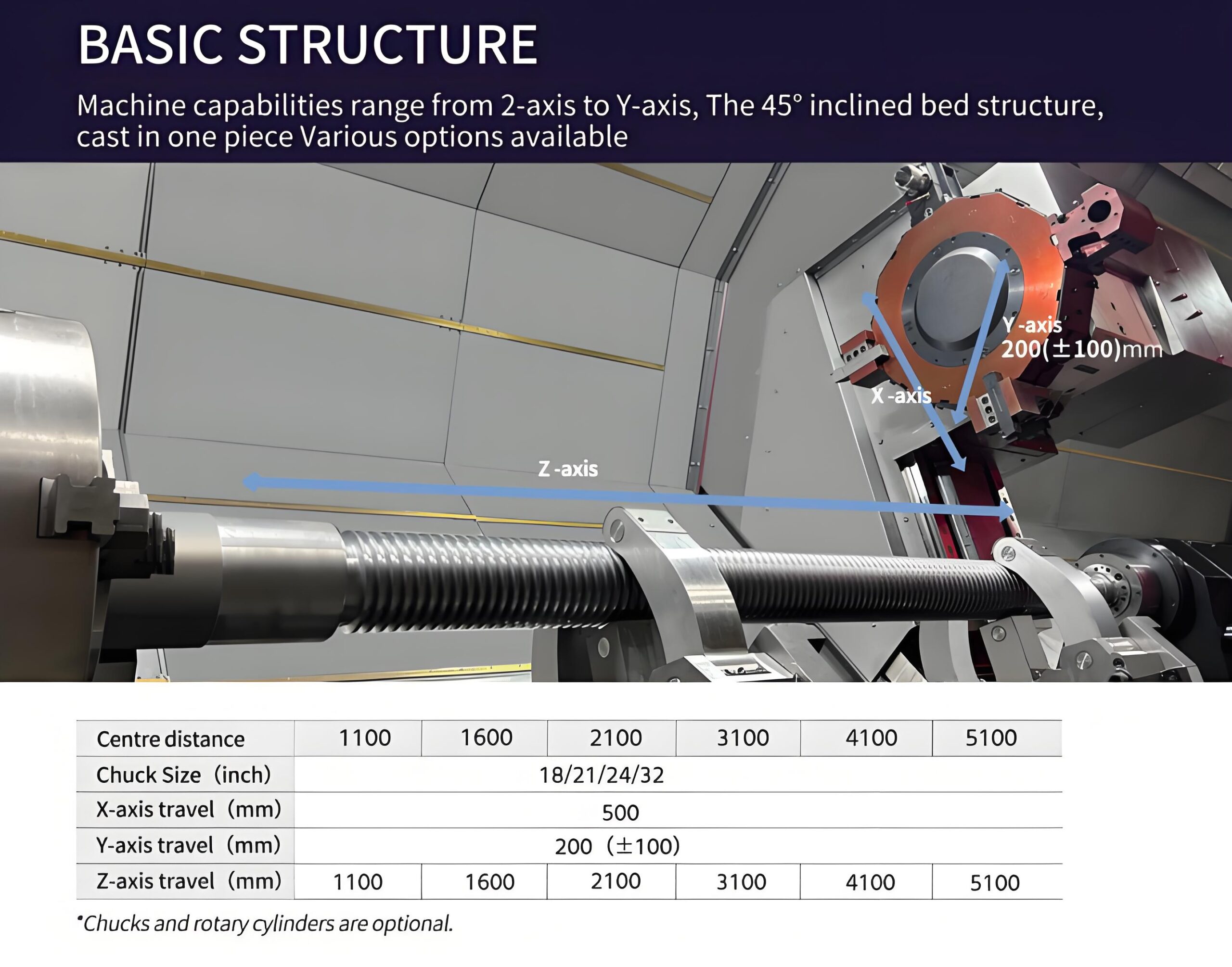

- Maximum productivity can be achieved with the machine’s 200mm (7.9inch) ±1000mm (39.3inch) orthogonal Y – axis structure, which allows users to machine a wide range
THE LARGEST MACHINING AREA AND TOP PERFORMANCE INPUTS COMPLEX
- With 6060mm maximum turning length, Ø900mm maximum turning diameter and 1103.8·m of torque, the machines are ideal for the heavy – duty cutting of large parts
THE SOLUTION FOR MACHINING A WIDE RANGE OF PIPES

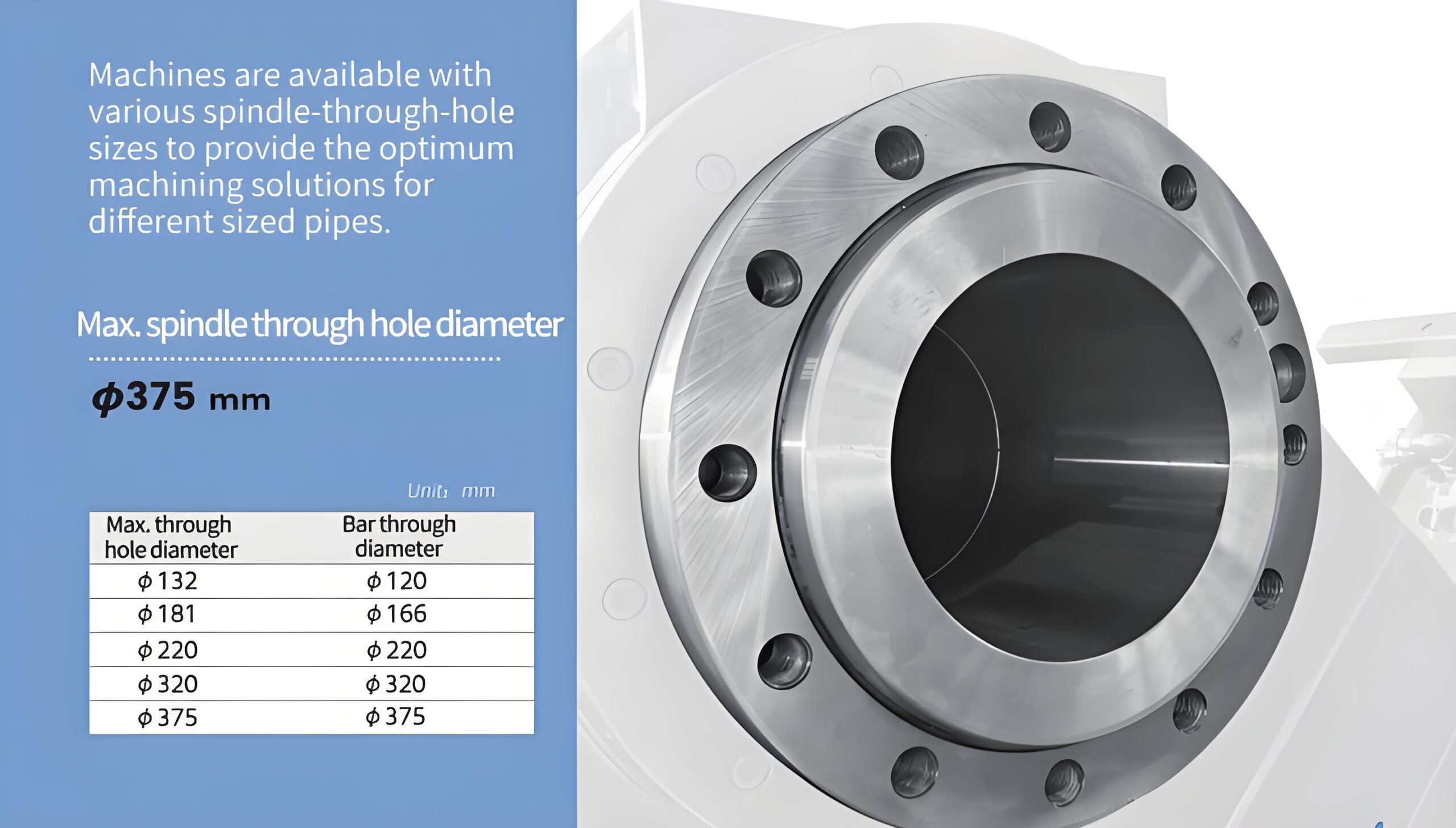

- Ø375mm maximum spindle through hole diameter make the machines ideal for turning large diameter pipes.
- The machines take the machining of high accuracy and performance – critical threads in their stride
| Description | Unit | TCK1000 | ||||||
| Capacity | Swing over bed | mm | φ1030 | |||||
| Swing oversaddle | mm | φ1000 | ||||||
| Chuck size | inch | 18/21/24/32 | ||||||
| Travels | X-axis | mm | 500 | |||||
| Y-axis | mm | ±100 | ||||||
| Z-axis | mm | 1000/1500/2000/3000/4000/5000 | ||||||
| Feedrates | Rapid traverse rate | X-axis | mm/min | 16 | ||||
| Y-axis | mm/min | 10 | ||||||
| Z-axis | mm/min | 16 | ||||||

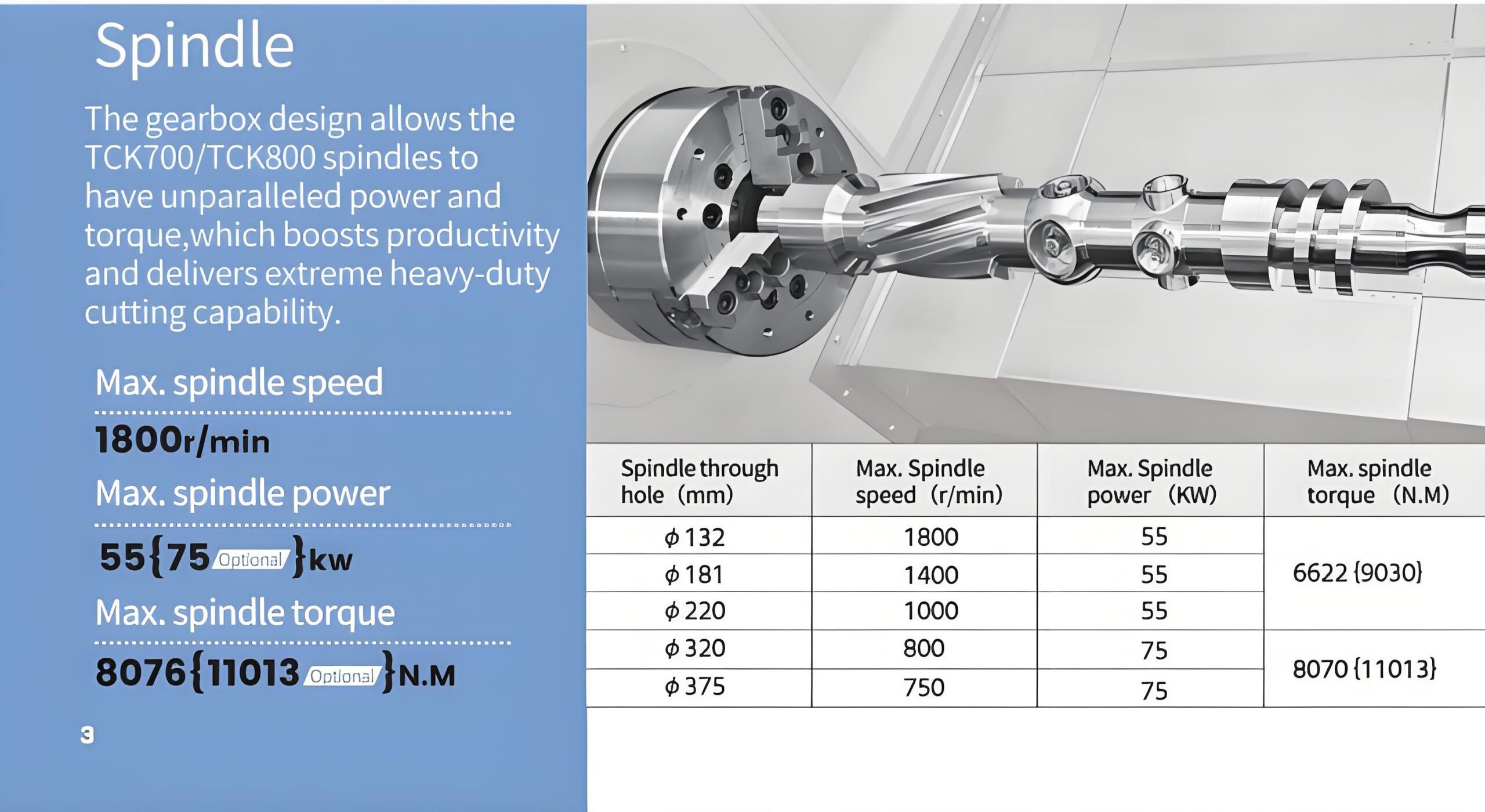

| Main Spindle | Main spindle motor power | KW | 55{75} | |||||
| Spindle Ratio | / | 1:03 | ||||||
| Spindle Ratio optional gearbox | / | 1:08 | ||||||
| Through hole of main spindle | mm | φ132 | φ181 | φ220 | φ320 | φ375 | ||
| Bar through diameter | mm | 120 | 166 | 220 | 320 | 375 | ||
| Spindle bearing diameter(Front) | mm | φ132 | φ181 | φ220 | φ320 | φ375 | ||
| 280 | 360 | 420 | / | / | ||||

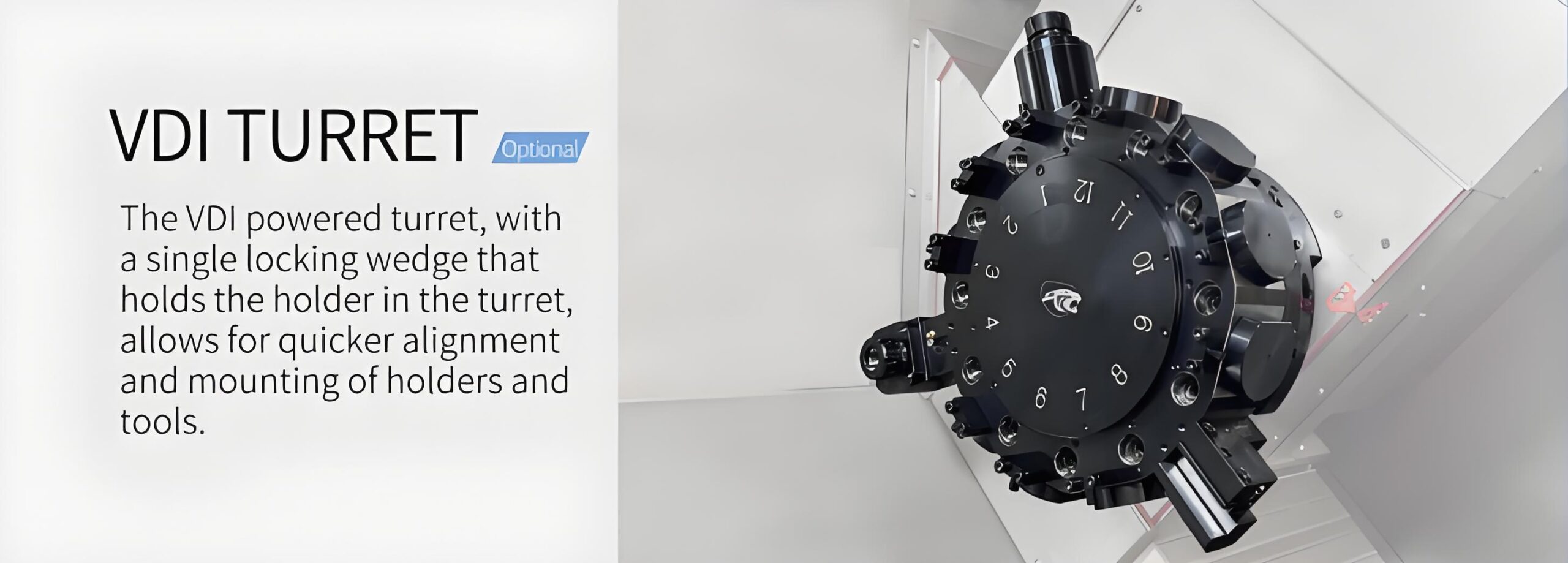

| Turret | No.of tool stations | ea | 12 | |||||
| OD tool size | mm | 32X32 | ||||||
| Max.boring bar size | mm | 50 | ||||||
| Turret indexing time (1 station swivel) | S | 0.5 | ||||||
| Max.rotary tool speed | r/min | BMT85(1500) | ||||||
| Rotary tool motor power | KW | 11 | ||||||

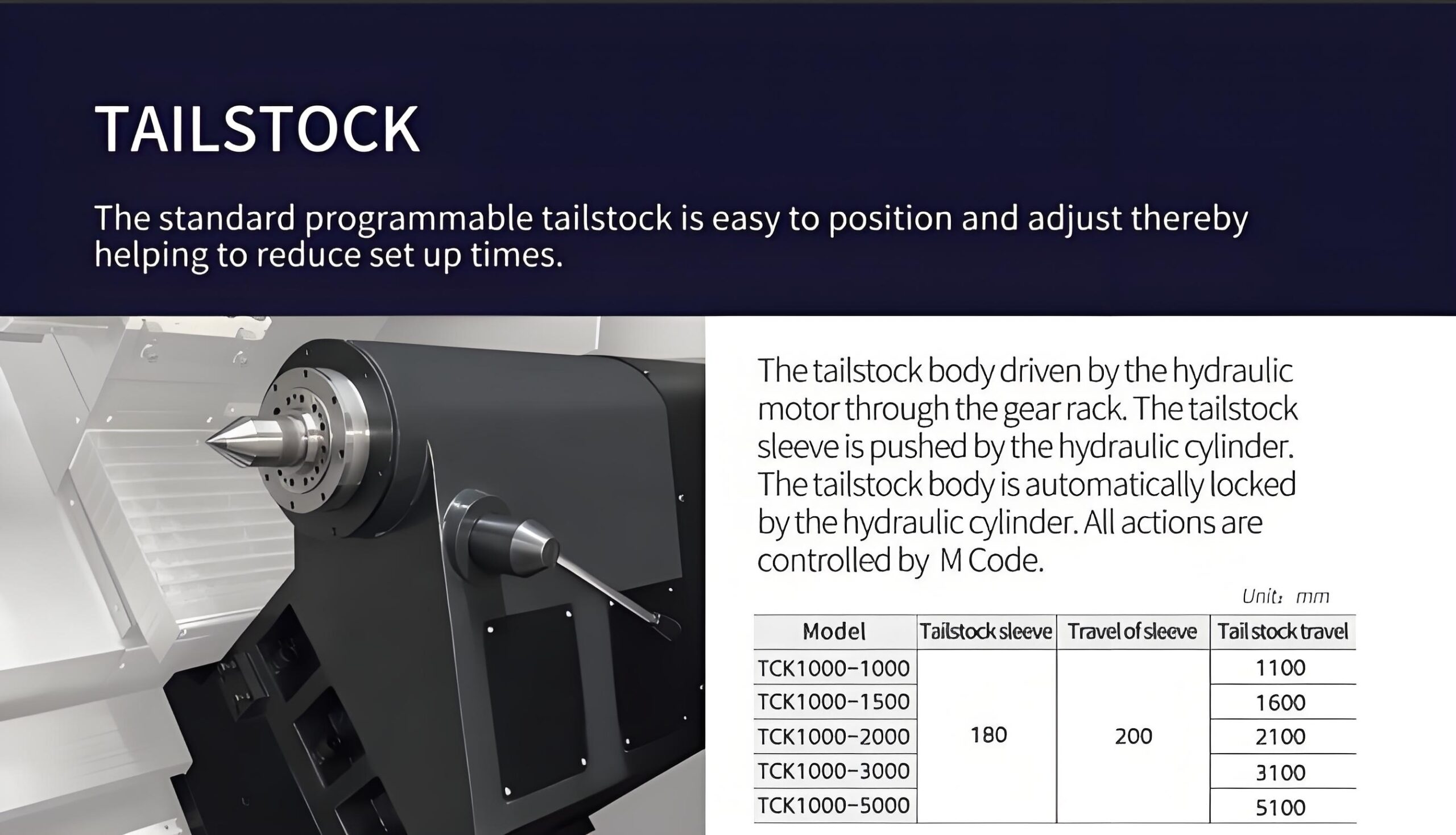

| Tailstock | Tail stock travel | mm | 1100/1600/2100/3100/4100/5100 | |||||
| sleeve diameter | mm | 180 | ||||||
| Travel of sleeve | mm | 200 | ||||||
| sleeve bore taper | MT | MT6 | ||||||
