Hand Tools Manufacturing Solutions

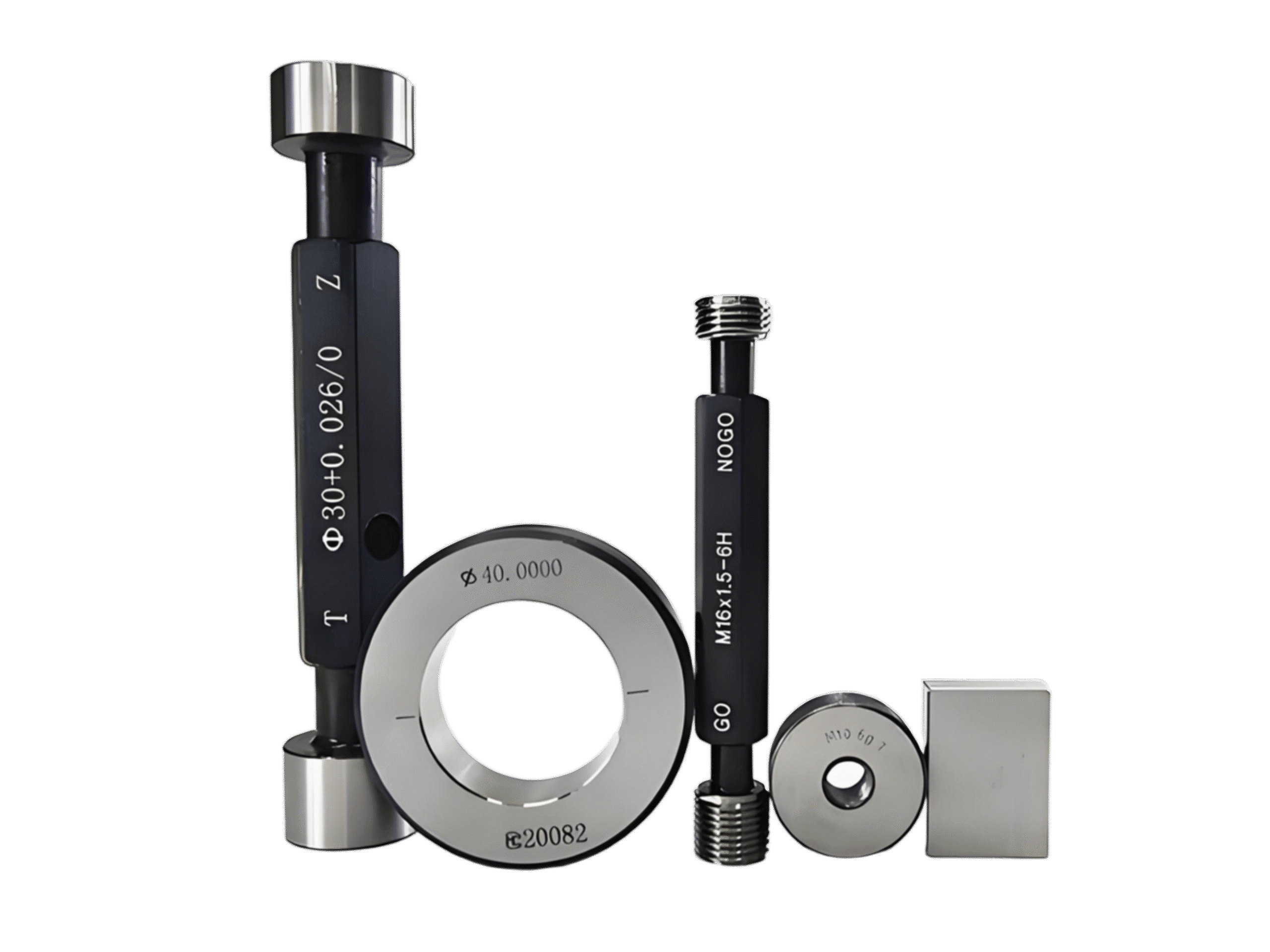

Precision tools are the “teeth” of the manufacturing industry, directly affecting machining accuracy, surface quality and productivity. We specialize in the manufacture of carbide/high speed steel cutting tools, medical drilling tools, precision gauges and other tooling products, providing a full range of solutions from material selection, precision molding, heat treatment, edge finishing to coating, testing and packaging to ensure that each tool meets the stringent requirements for precision and life.

Common Customer Challenges

The geometric accuracy and micro-morphology of the tool edge are difficult to control stably, affecting cutting performance and surface quality
Deformation and internal stress after heat treatment of cemented carbide/high-speed steel materials lead to a decrease in subsequent finishing yield
Blunt edge and unstable burr control affect cutting force fluctuations and workpiece surface roughness
Difficult to control coating process parameters and bond strength, and tool life and wear resistance fluctuate greatly
Tools with thin length ratios (such as slender drill bits and reamers) are prone to vibrate during finishing, and the straightness and roundness are extremely different.
Lack of standardization of tool detection and classification, making it difficult to achieve batch consistency management

Valve Industry Manufacturing Process

Raw Materials And Incoming Materials Inspection

Verify alloy grade (CI/SS/Duplex/Hastelloy), casting integrity and dimensions; sample chemistry and hardness.
Optical spectrometer, universal testing machine, CMM, ultrasonic flaw detector, hardness tester, metallographic microscope.

Casting/Forging Prep And Roughing

Remove risers/flash, shot‑blast, and rough‑turn/mill datums on body, bonnet and seat rings.
Swing frame grinder amchine, shot blaster, CNC lathe, milling machine, machining center.

Benchmarking And Critical Machining

Establish reference faces and finish critical bores (stem/seat/guide) with on‑machine probing compensation.
Horizontal boring milling machine, jig borer, machining center, on‑machine probe, precision fixturing.

Seat Hardfacing / Surface Hardening

Apply laser cladding or induction/laser hardening on seat/sealing areas to specified thickness and hardness.
Laser cladding machine, induction/laser hardening machine, pyrometer, hardness tester.

Precision Grinding / Lapping Of Sealing Faces

Grind and lap sealing faces (seat/plug/ball/disc) to flatness and roughness targets for low leakage.
Surface grinder machine, spherical/OD grinder, lapping machine, flatness gauge, surface roughness tester.

Stem / Shaft Finishing

Finish stem journals, threads and key areas to runout, roundness and Ra targets.
CNC lathe, OD grinder, thread grinder, polishing machine, CMM.

Deburring, Cleaning And Drying

Perform robotic/electrochemical deburring, multi‑stage ultrasonic cleaning and vacuum drying to cleanliness targets.
Robot deburring cell, ECM deburring unit, ultrasonic washer, high‑pressure sprayer, vacuum dryer, cleanliness tester.

Assembly And Setting

Assemble seats/seals/stem/packing, set preload and torque, and verify alignment and contact patterns.
Assembly benches/fixtures, torque wrench, feeler gauges, blueing kit, dial indicators.

Pressure / Leak And Functional Testing

Run hydrostatic/shell/seat leakage tests per standard, then functional cycling and torque/NVH checks.
Hydrostatic/leak test bench, pressure transducers, flowmeter, torque tester, NVH meter, data logger.

Final Inspection, Marking And Packaging

Perform CMM/visual checks, laser mark IDs and traceability, apply anti‑corrosion protection and VCI packing.
CMM, laser marking machine, barcode printer/scanner, VCI/vacuum packaging system.

Data Traceability And Quality Control

Capture machining/cladding/heat‑treat/test data in MES/SPC for full traceability and rapid containment.
MES, data acquisition system, SPC software, QMS with barcode/RFID.
