The equipment adopts a portal structure, servo motor loading, and supports round/regular hexagonal/special-shaped bar calibration with a length of 2.5-3m and a diameter of 8-25mm. The core advantages include LSC filtering algorithm (filtering out surface errors), S bending straightening technology (fast handling of complex bends), automatic compensation mechanism (no impact on tooling wear), and data traceability (ultra-large database), which are suitable for automobiles, building materials and other industries, and solve the problems of poor adaptability, insufficient accuracy, and low efficiency of traditional equipment.

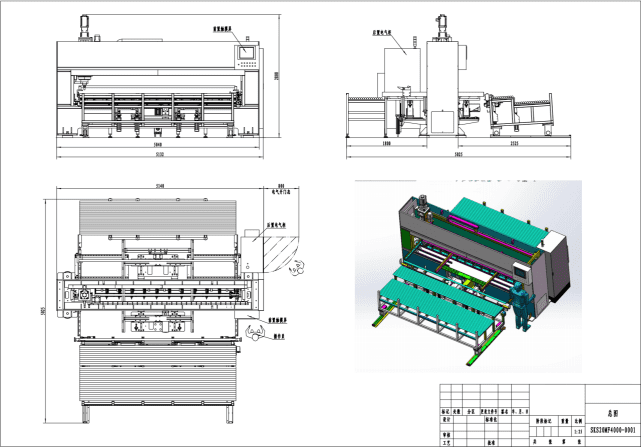

Gate Straightener parameters and configuration
| Parameter Name | Value/Description |
|---|---|
| Applicable Bar Length | 2500~4000mm |
| Applicable Bar Diameter | 8~25mm |
| Straightening Accuracy | ≤0.4mm/M |
| Repeat Measurement Accuracy | ≤0.005mm |
| X-axis (Pressure Point Switching) Speed | ＞400mm/s |
| Y-axis (Pressurization Straightening) Speed | ＞40mm/s |
| Z-axis (Rotary Measurement) Speed | 20~120 rpm |
| Changeover Time (Same Type) | ≤20min |
| Changeover Time (Special Shape/Circular) | ≤40min |
| Data Storage | Unlimited (Exportable to Excel) |
| Component Category | Component Name | Brand & Origin |
|---|---|---|
| Main Machine Section | Main Machine Frame | Sanco (China) |
| Loading Screw Rod | TBI (Taiwan, China) | |
| Servo System (Movement/Loading) | INOVANCE (China) | |
| Pneumatic Section | Cylinder/Valve Group | Airtac (China) |
| Electrical Section | PLC Programming Control System | MITSUBISHI (Japan) |
| Circuit Protection Circuit Breaker | Schneider (France) | |
| Measurement System | Measuring Sensor | Sanco (China) |
| Straightening Tooling | Fixed Support/Indenter | Sanco (China) |
| Loading & Unloading Mechanism | Lifting Silo/Stepping Mechanism | Sanco (China) |
| Safety Protection | Electrical Interlock System | Sanco (China) |
| Software System | Straightener8 Measurement & Control Software | Sanco (Patented in C |
