Machine Model	LKG2116 – 4500L	LKG2116 – 7500L	LKG2132 – 4500L	LKG2132 – 7500L	Unit
Rated pulling capacity	160	160	320	320	KN
Rated stroke	4500	7500	4500	7500	mm
Maximum knife length	3150	3150×2	3150	3150×2	mm
Broaching speed (stepless speed regulation)	0.5 – 40	0.5 – 40	0.5 – 40	0.5 – 40	m/min
Return speed	0.5 – 60	0.5 – 60	0.5 – 60	0.5 – 60	m/min
Main motor power	38	38	80	80	kW
Machine floor space (L×W×H)	12000mm×8500mm×4500mm	20000mm×8500mm×4500mm	12000mm×10000mm×5000mm	22000mm×10000mm×5000mm	mm
Net weight	105000	125000	135000	155000	kg

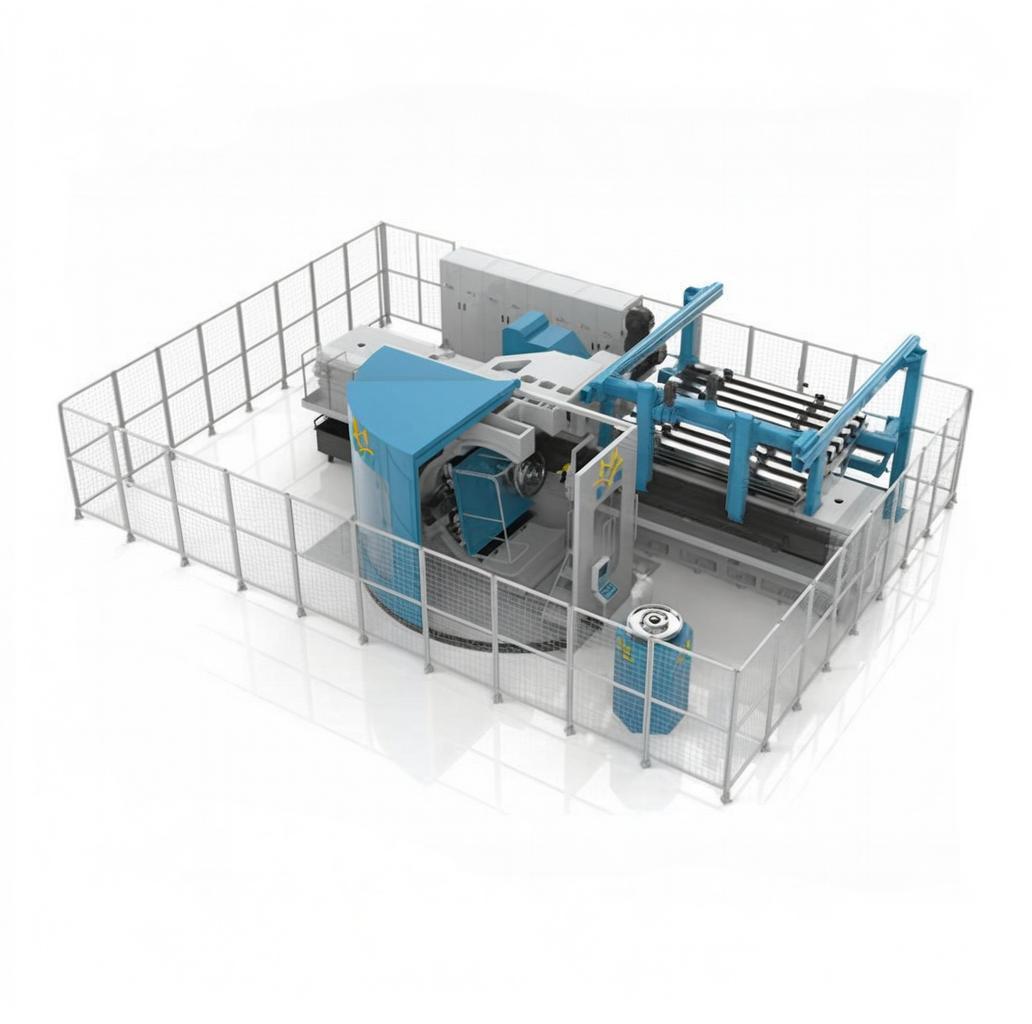

Tenon and Groove CNC Horizontal Side Broaching Machine
