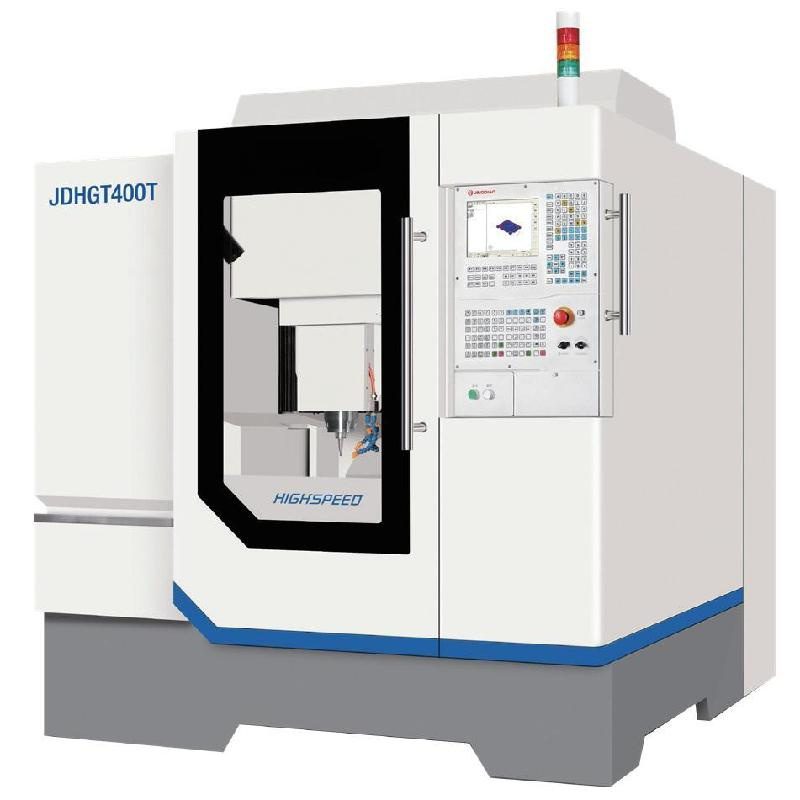

JDHGT400T 3-Axis High-Speed Machining Center

JDHGT400T is a 3-axis high-speed machining center with micron-level precision machining capability manufactured . It has the ability of precision milling, boring, drilling, tapping and other compound tooling, applicable to the processing of precision molds and precision parts, relying hardware configuration and technical support, it can stably achieve 2-5 μm machining accuracy.

Category High Speed Milling Machine

Description

JDHGT400T 3-Axis High-Speed Machining Center 2

Connector Mold Electrode Helps customers reduce the number

of electrodes required for EDM from 10 to 1.

Size: 167×42×10 mm

Material: Copper

Machining feature: 2000 small columns

Gear Electrode Test Piece The allowance tolerance of 34 tooth surfaces is within ±5 μm. Size: 47×47×15 mm Material: Copper Machining feature: 34 tooth surfaces

JDHGT400T 3-Axis High-Speed Machining Center 3

JDHGT400T 3-Axis High-Speed Machining Center 4

Lamp Cover Steel Mold Test Piece Continuous finishing for 16 h with a tapered end mill, tool wear is less than 5 μm. Size: 110×64×45 mm Material: S136 (HR52)

Model	JDHGT400T
Travel	400×400×200 mm	400×400×200 mm
Spindle	JD105E – 36 – ISO20/F	JD135E – 32 – HE32/F
Tool holder	ISO20	HSK – E32
Tool magazine	Umbrella – type / Chain – type	Umbrella – type / Chain – type
Capacity	20 / 37	20 / 37
Weight	5100 kg	5100 kg
Application	Precision micro hole drilling	Micro milling / Precision milling
