IMT40/50/65/85H Horizontal 5 Axis Milling And Turning Composite

IMT40/50/65/85H Horizontal 5 Axis Milling And Turning Composite

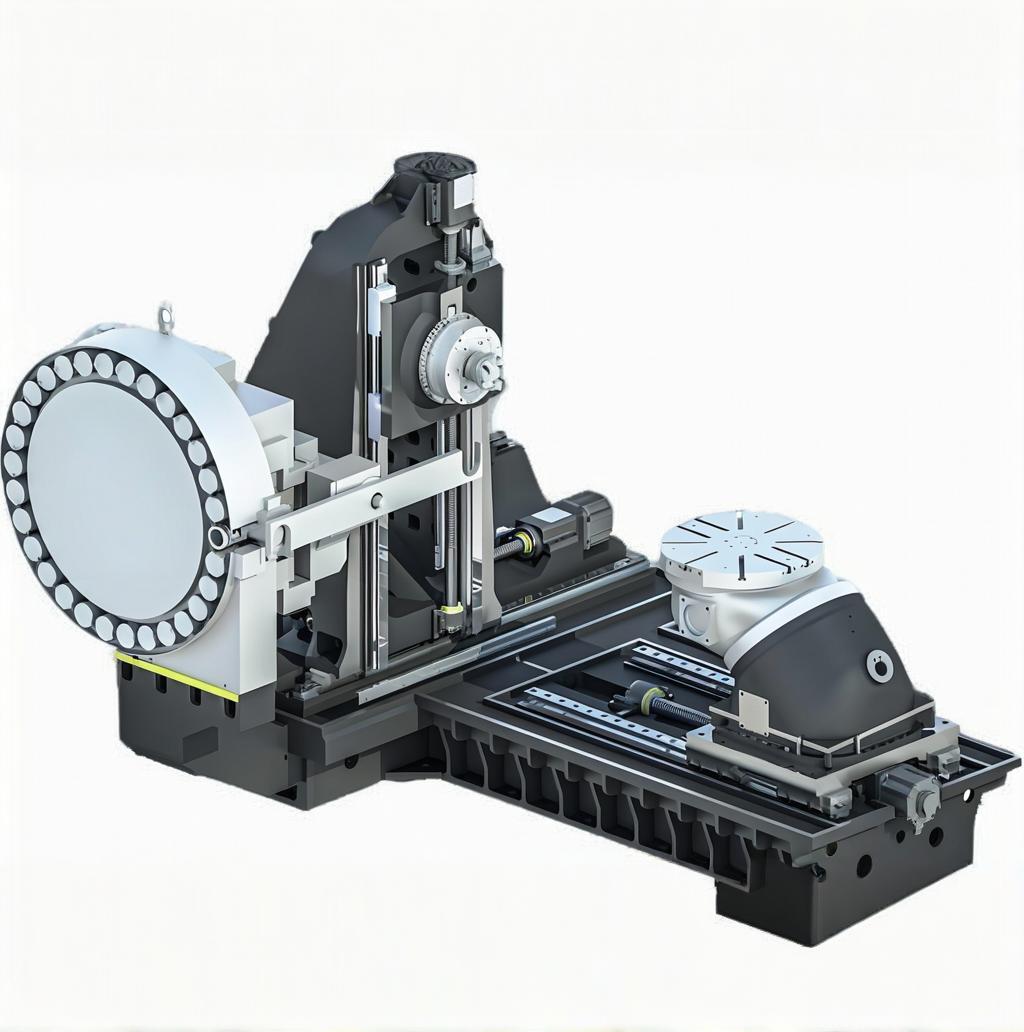

iMT-H series is a non-orthogonal rotor five-axis linked milling and turning composite; the workpiece rotor can be vertically converted and supports high-speed rotation, which can realize lean processing such as complex surface milling and turning.

Contact Us
Category
  • Bed: Made of HT300A high-strength dense-baked casting, with an integrally cast bed.
  • Tool Spindle: High-precision HSK milling-turning electric spindle with a maximum speed of 24000rpm and a maximum torque of 340Nm; an optional locking mechanism is available, and it can have turning functions.
  • Non-orthogonal B & C-axis Rotary Table: High-speed direct-drive torque rotary table. With the cooperation of B and C axes, the worktable can switch between vertical and horizontal positions. It can not only meet the requirements of complex surface milling but also perform high-speed turning.
Model65 Series85 SeriesUnit
Worktable Diameter∅600∅850mm
Worktable Load Capacity10002000kg
Max. Rotational Speed of C-axis Table450300rpm
C-axis Table Torque (S1/S3)1000/20002000/3500Nm
Tool Spindle SpecificationHSK-T100HSK-T100–
Max. Rotational Speed of Tool Spindle1200012000rpm
Rated Torque of Tool Spindle (S1/S3)110/160200/400Nm
Max. Rotational Speed of B-axis6060rpm
Max. Machining Diameter∅650∅1000mm
B-axis Stroke180180°
C-axis Stroke360360°
Tool Magazine Capacity24/30/48/6024/30/48/60T
