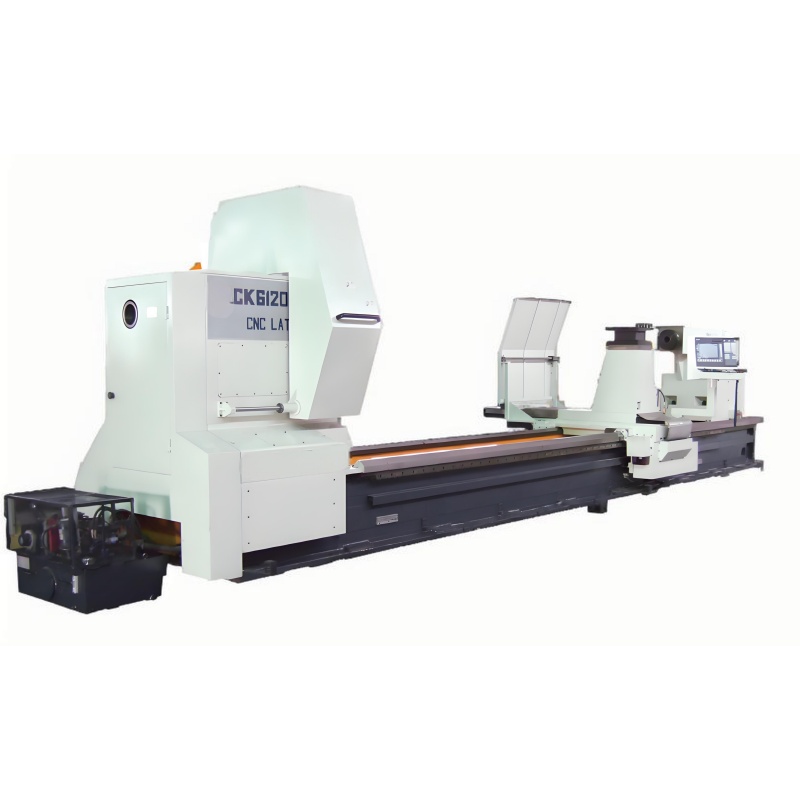

The main components and structures have all undergone optimized design, and the overall machine has excellent stability. It is applicable to industries such as energy, chemical engineering, light industry, electromechanics, papermaking, and the automotive industry. It features high precision, high power, high rigidity, and a high degree of automation.
It is suitable for processing shaft, sleeve, and disc – shaped parts. For example, it can turn inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces, cut grooves, chamfer, and cut threads. It has strong process adaptability, high processing efficiency, simple operation, and comprehensive functions. It can reduce the requirements for workers’ technical proficiency and is an ideal mechanical processing equipment.
Machine Specifications
| CK611-H/1series CNC horizontal lathe | ||||||
| The model of machine | CK61125H/1 | CK61140H/1 | CK61160H/1 | CK61180H/1 | CK61200H1 | |
| The main parameter | ||||||
| The max weight between centers | kg | 15000 | ||||
| The width of the bed | mm | 1100 | ||||
| The max.swing diameter over bed | mm | 1290 | 1440 | 1640 | 1840 | 2040 |
| The max.swing diameter over carriage | mm | 900 | 1050 | 1250 | 1450 | 1650 |
| The max.length of workpiece | mm | 1000-16000 | ||||
| The headstock parameter | ||||||
| The diameter of front bearing | mm | 240 | ||||
| Spindle bore diameter | mm | 130 | ||||
| Taper of spindle bore | Metric 140# | |||||
| kinds of spindle speed | hydraulic two grade and stepless | |||||
| Range of spindle speed | 3-200r/min | |||||
| Main motor power | Kw | 37Kw | ||||
| The feeding system parameter | ||||||
| Siemens CNC system | ||||||
| The torque of longitudinal servo motor | N.m | 36 | ||||
| The torque of transversal servo motor | N.m | 27 | ||||
| FANUC CNC system | ||||||
| The torque of longitudinal servo motor | N.m | 30 | ||||
| The torque of transversal servo motor | N.m | 22 | ||||
| The section of tools | 55X55 | |||||
| The position no.of tool post | vertical four postition | |||||
| repeatability positioning accuracy of tool post | 0.01mm | |||||
| The longitudinal rapid speed | mm/min | 4000 | ||||
| The transversal rapid speed | mm/min | 4000 | ||||
| The longitudinal feeding speed | mm/min | 1-2000 | ||||
| The transversal feeding speed | mm/min | 1-2000 | ||||
| The parameter of tailstock | ||||||
| Diameter of tailstock sleeve | mm | 260 | ||||
| taper of tailstock sleeve | 80# | |||||
| Travel of tailstock sleeve | mm | 300mm | ||||
