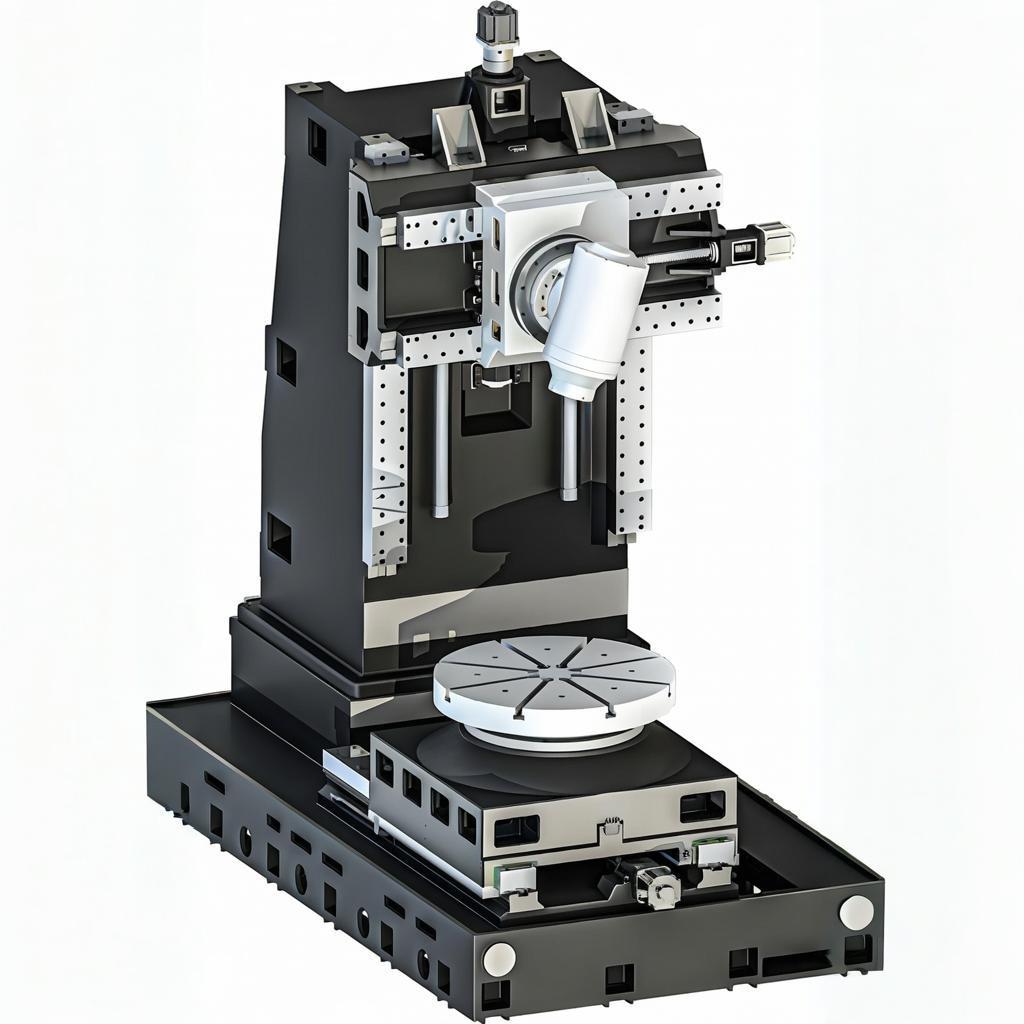

Bed: Made of HT300A high-strength dense-baked casting, with an integrally cast bed.
B-axis: Adopts torque motor direct drive technology + high-precision encoder, featuring a compact structure, high rigidity, large torque and high precision.
Tool spindle: A large-torque turning and milling spindle, capable of supporting gear hobbing (shaving) processing of gears with a maximum modulus of 12.
Rotary table: A direct-drive rotary table with a maximum large torque of 20000Nm, equipped with a high-precision encoder, enabling high-precision indexing.
| Parameter | 55 Series | 85 Series | 125 Series | Unit |
| Model | 55 Series | 85 Series | 125 Series | – |
| Worktable Specification | ∅650 | ∅850 | ∅1250 | mm |
| Worktable Torque (S1/S3) | 1000/1600 | 3500/6000 | 8000/13500 | Nm |
| Worktable Power (S1/S3) | 14.6/16.8 | 55/63 | 83.7/99 | kw |
| Max. Rotational Speed of Worktable | 300 | 300 | 300 | rpm |
| Tool Spindle Specification | HSK-T100 | HSK-T100 | HSK-T100 | – |
| Tool Spindle Torque (S1/S3) | 200/400 | 340/500 | 340/500 | Nm |
| Tool Spindle Power (S1/S3) | 60/70 | 71/78 | 71/78 | kw |
| Max. Rotational Speed of Tool Spindle | 10000 | 6000 | 6000 | rpm |
| Tool Spindle Magazine Capacity | 8月16日 | 8月16日 | 8月16日 | T |
| Max. Rotational Speed of B-axis | 72 | 72 | 72 | rpm |
| B-axis Torque (S1/S3) | 750/1250 | 750/1250 | 750/1250 | Nm |
| Max. Machining Diameter | ∅800 | ∅1000 | ∅1500 | mm |
| B-axis Stroke | 240(±120) | 240(±120) | 240(±120) | ° |
| C-axis Stroke | 360 | 360 | 360 | ° |
| Y-axis Stroke | ±200 | ±300 | ±300 | mm |
| Max. Hobbing/Shaving Module | 8 | 12 | 12 | – |
| The maximum machining length among the above parameters is the standard configuration option. | ||||
