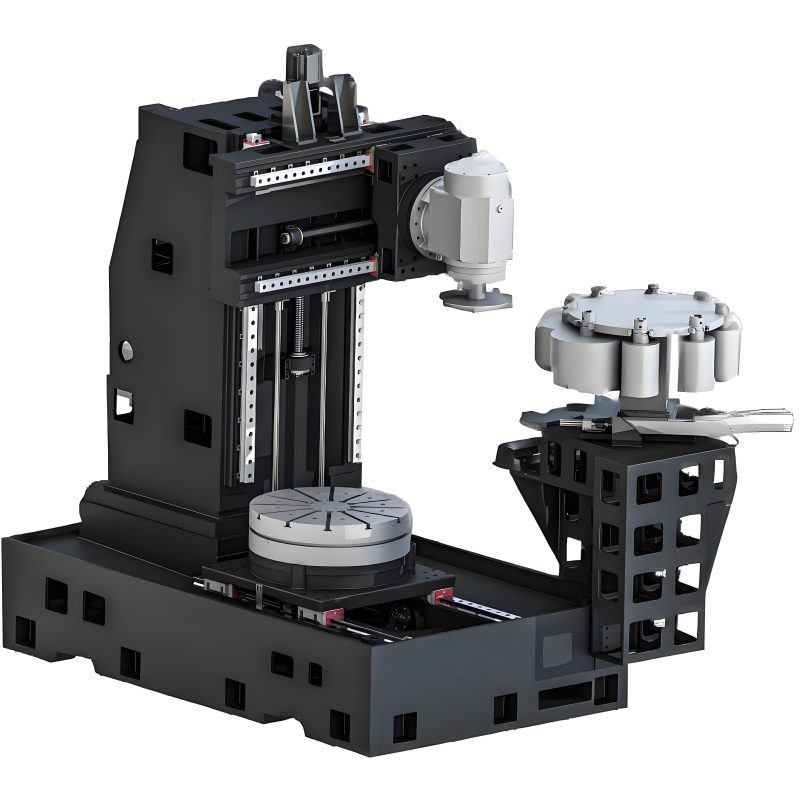

- Bed body: HT300A high-strength dense baking casting, integral casting bed body.
- Axis B: Torque motor direct drive technology + high-precision encoder, with a compact structure, high rigidity, high torque, and high precision. A non-orthogonal Axis B is optional.
- Tool magazine: 8/16/32 – station ATC umbrella – shaped tool magazine is optional, with rapid tool change.
- Turntable: High-torque and high-precision direct-drive torque turntable (hydrostatic direct-drive turntable is optional).
| Model | GM40 | GM60 | GM85 | GM125 | GM160 | Unit |
| Worktable Specification | ∅400 | ∅600 | ∅850 | ∅1250 | ∅1600 | mm |
| Worktable Torque (S1/S3) | 850/1500 | 850/1500 | 1000/1600 | 3500/6000 | 8000/13500 | Nm |
| Worktable Power (S1/S3) | 8.9/15.7 | 8.9/15.7 | 14.6/16.8 | 36.6/44 | 83.3/99 | kw |
| Maximum Rotational Speed of Worktable | 450 | 450 | 300 | 300 | 300 | rpm |
| Tool Spindle Specification | HSK-T63 | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | |
| Tool Spindle Torque (S1/S3) | 70/140 | 110/160 | 110/160 | 110/160 | 200/350 | Nm |
| Tool Spindle Power (S1/S3) | 25/29 | 46/50 | 46/50 | 46/50 | 83/99 | kw |
| Maximum Rotational Speed of Tool Spindle | 12000 | 12000 | 12000 | 12000 | 10000 | rpm |
| Maximum Torque Capacity of Tool Spindle | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | T |
| Maximum Return Speed of B-axis | 72 | 72 | 72 | 72 | 60 | rpm |
| B-axis Torque (S1/S3) | 750/1250 | 750/1250 | 750/1250 | 750/1250 | 1500/3000 | Nm |
| Maximum Machining Diameter | ∅500/∅600/∅1000 | ∅600 | ∅1000 | ∅1300 | ∅1600 | mm |
| A-axis Rotation Range | 240(-120) | 240(-120) | 240(-120) | 240(-120) | 240(-120) | ° |
| C-axis Stroke | 360 | 360 | 360 | 360 | 360 | ° |
| Y-axis Stroke | ±150 | ±150 | ±250 | ±300 | ±300 | mm |
