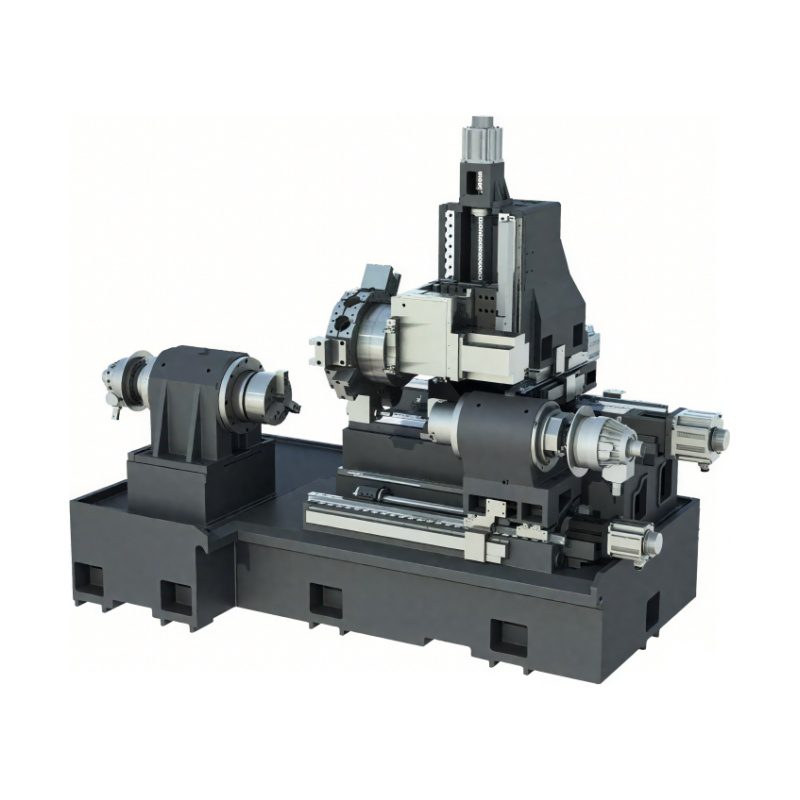

Bed body: HT300A high-strength tightly baked casting, integral 30° inclined bed body.
Permanent magnet synchronous motorized spindle: High-precision and high-rigidity built-in permanent magnet synchronous motorized spindle, with spindle specifications of A2-5, A2-6, and A2-8.
Servo turret: Standard 12 stations, with the fastest tool change time of 0.35s and precise repeat positioning accuracy.
NC intelligent tailstock: Servo-integrated programmable tailstock, with programmable control of tailstock thrust, position, and speed. Sleeve specifications include MT3, MT4, and MT5.
Y-axis module: modular design, virtual Y-axis system.
Power turret: 12/15 stations, high-rigidity and high-torque output power turret, with BMT45, BMT55, and BMT65 power tool holder specifications.
td {white-space:nowrap;border:0.5pt solid #dee0e3;font-size:10pt;font-style:normal;font-weight:normal;vertical-align:middle;word-break:normal;word-wrap:normal;}
| Model | T35 | T45 | T55 | Unit |
| Spindle Taper (Main/Sub) | A2-5/A2-4 | A2-6/A2-5 | A2-8/A2-6 | JIS |
| Standard Chuck Size (Main/Sub) | 6/5 | 8/6 | 10/8 | “ |
| Maximum Spindle Speed (Main/Sub) | 6000/8000 | 4500/6000 | 3000/4500 | rpm |
| Maximum Spindle Power (Main) | 11/15 | 15/18.5 | 30/37 | kw |
| Spindle Power (Sub) | 7.5/11 | 11/15 | 15/18.5 | kw |
| Maximum Machining Diameter | ∅230 (∅250) | ∅315 (∅390) | ∅450 (∅500) | mm |
| Maximum Machining Length | 350 | 550 | 750 | mm |
| Number of Tools | 12 | 12 | 12 | pcs |
| Tool Specification | 25/∅32 | 25/∅40 | 25/∅50 | mm |
| Power Turret Specification | BMT45 | BMT55 | BMT65 | – |
