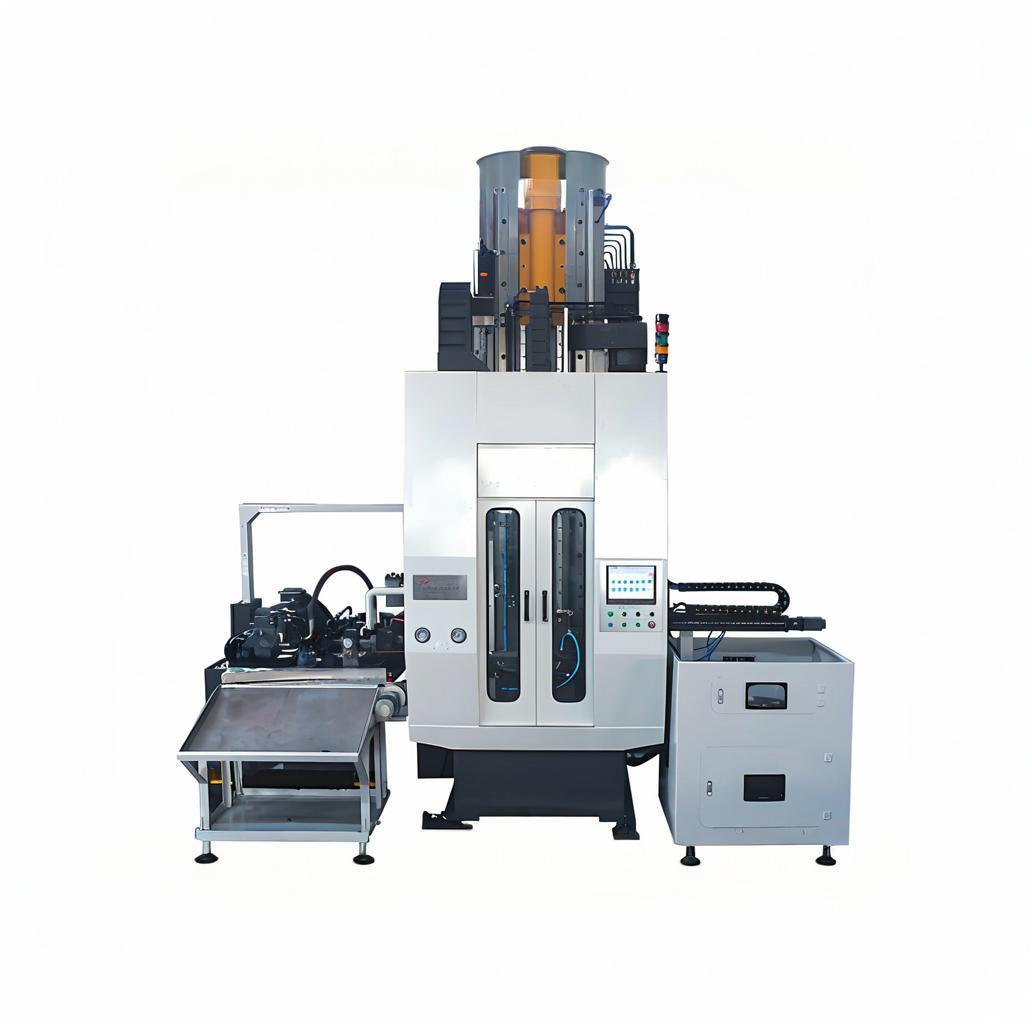

Products Description
Main applications:Processing of internal teeth, internal splines and internal hole parts
Features:Adopt hydraulic drive, servo hydraulic system, stepless speed regulation.
Structure
Broaching full escort, can adopt multi-station design;
Vertical pull-up type (moving workpiece).
| Model | L5705 | L5710 | L5720 | Unit |
|---|---|---|---|---|
| Rated broaching force | 50 | 100 | 200 | KN |
| Max stroke length | 800 | 1250 | 1600 | mm |
| Range of broaching tool length | 350 – 1000 | 600 – 1400 | 600 – 1800 | mm |
| Floor area and height (L×W×H) | 2200×2450×3600 | 2700×3150×4590 | 3400×3010×5670 | mm |
| Net weight | 6000 | 9000 | 15000 | kg |
