This series of high-precision grinding machines is also the best choice for grinding machine guideways.
Base And Table Sliding Mechanism
- The base features a large-span double “V” slideway design, ensuring more precise linear accuracy in the working direction and stronger support for large workpieces.
- Constructed from high-precision ground V slides combined with TURCITE-B slide media, it fully absorbs vertical loads and oil film adhesion, achieving smooth movement.
- The left-right horizontal movement of the main spindle base adopts a roller-type slide, ensuring high movement accuracy, long-term maintenance of the horizontal movement accuracy of the main spindle base, and reducing maintenance costs.

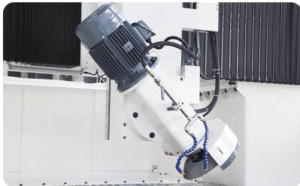

Vertical Grinding Head (Special Accessories)
- The A-axis is driven by a servo motor for rotational angle adjustment, saving time and effort.
- The A-axis can be adjusted in both directions within -60° to +60°, offering flexibility and simple operation.
- Equipped with a hydraulic device for precise automatic adjustment to the set angle, supporting both manual and automatic angle adjustment.

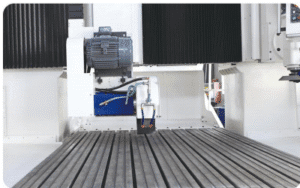

Horizontal Main Grinding Head
- The lifting drive uses a precision ball screw combined with a servo motor for precise positioning feed, and can be equipped with a high-resolution optical scale (Opt) loop in conjunction with a CNC control system.
- Paired with a high-precision and high-rigidity hydrostatic grinding head to maximize grinding force and achieve excellent surface finish!
| Model/Content | TAD – 1220GM | TAD – 1230GM | TAD – 1240GM | TAD – 1620GM | TAD – 1630GM | TAD – 1640GM | TAD – 2130GM | TAD – 2140GM | TAD – 2160GM |
| Maximum Grinding Length of X – axis | 2100mm | 3100mm | 4100mm | 2100mm | 3100mm | 4100mm | 3100mm | 4100mm | 6100mm |
| Working Table Size (Length × Width) | 2000×1000mm | 3000×1000mm | 4000×1000mm | 2000×1400mm | 3000×1400mm | 4000×1400mm | 3100×1600mm | 4100×1600mm | 6100×1600mm |
| Maximum Travel of Y – axis | 1200mm | 1600mm | 2150mm | ||||||
| Maximum Travel of Z – axis | 500mm | 700mm | 1000mm | ||||||
| Grinding Height (Horizontal Spindle) | 500mm | 700mm | 1000mm (1300mm with additional height) | ||||||
| Size of Vertical Column (Width × Height) | 1200×700mm | 1600×900mm | 2150×1300mm (1600mm with additional height) | ||||||
| X – axis Movement Speed | 5 – 25(m/min) | 5 – 25(m/min) | 5 – 25(m/min) | ||||||
| Y – axis Movement Speed | 0 – 5(m/min) | 0 – 5(m/min) | 0 – 5(m/min) | ||||||
| Z – axis Movement Speed | 0 – 2(m/min) | 0 – 2(m/min) | 0 – 2(m/min) | ||||||
| Rotational Speed of Horizontal Spindle | 0 – 1000rpm | 0 – 1000rpm | 0 – 1000rpm | ||||||
| Rotational Speed of Vertical Spindle | 0 – 1650rpm | ||||||||
| Swivel Angle of Vertical Spindle | ±60° | ||||||||
| Recommended Grinding Wheel Size for Horizontal Spindle (Outer Diameter × Width × Bore Diameter) | 510×100×203 | 510×100×203 | 610×100×203 | ||||||
| Recommended Grinding Wheel Size for Vertical Spindle (Outer Diameter × Width × Bore Diameter) | 400×60×127 | ||||||||
| Form of Worktable Guideway | Double V – type Guideway | Double V – type Guideway | Double V – type Guideway | ||||||
| Size of Worktable T – slot (Size × Pitch × Quantity) | 22mm × 170mm × 6 | 22mm × 170mm × 8 | 26mm × 200mm × 8 | ||||||
| Maximum Load – bearing Capacity of Worktable | 2000kg | 3000kg | 4000kg | 3500kg | 5000kg | 6500kg | 6500kg | 8000kg | 12000kg |
| Machine Weight | 13000kg | 16000kg | 21000kg | 18000kg | 21000kg | 24000kg | 28000kg | 31000kg | 41000kg
|
