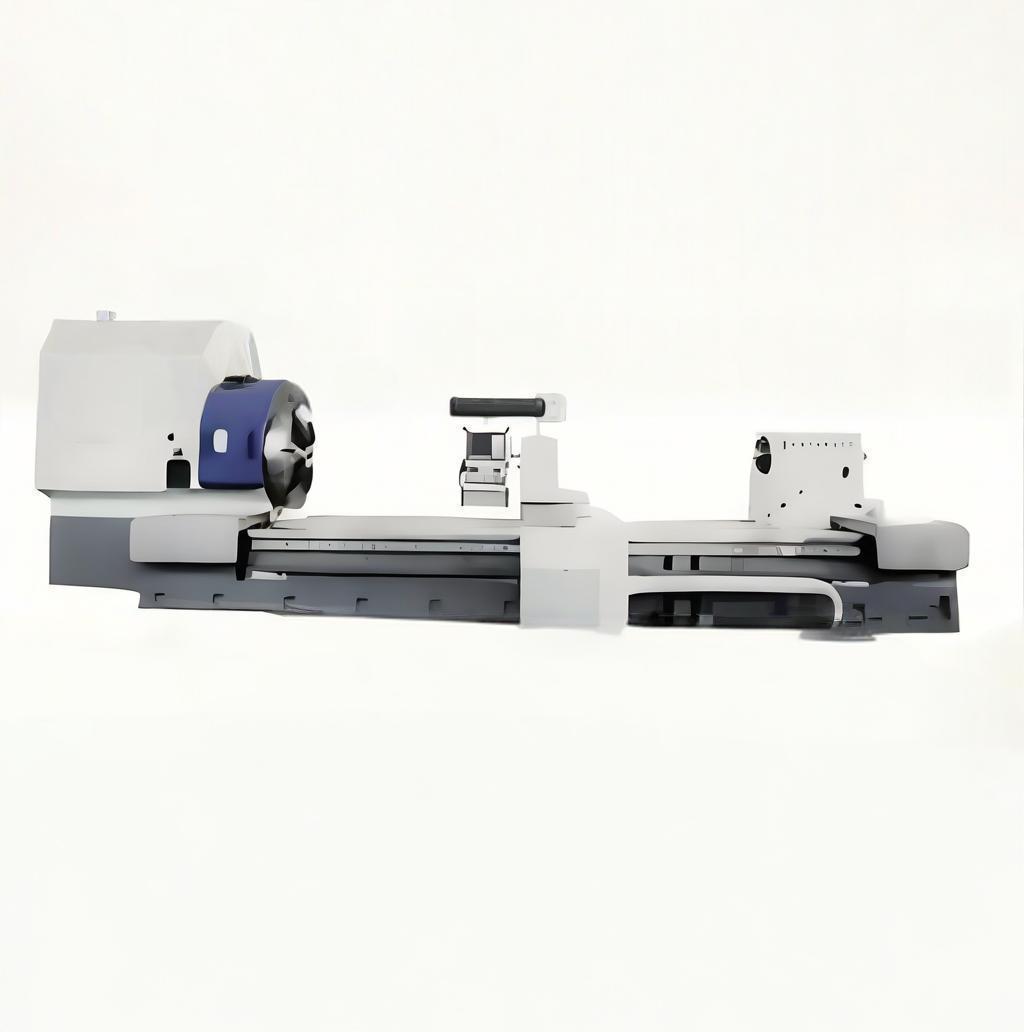

CK61 Series CNC Heavy-Duty Horizontal Turning Lathes

The CNC brand of SIEMENS, FANUC, GSK and HNC can be selected on this machine.

This series of machine is applicable for rough and finish machining the cylindrical surface, external curved surface, conical surface, thread and end surface, as well as grooving and cutting of the axle parts which are used in heavy-duty machinery and equipment manufacturing industry, roller repairing and manufacturing industry, shipbuilding industry, ventilation equipment manufacturing industry, electrical equipment manufacturing industry and paper machinery manufacturing industry.

ParametersCK61100CK61125CK61160CK61200
Type of lathe bed guidewayIntegrated three guideways on lathe bedIntegrated three guideways on lathe bedIntegrated three guideways on lathe bedIntegrated three guideways on lathe bed
Max. swing diameter (mm) On lathe bedφ 1000φ 1250φ 1600φ 2000
On tool postφ 800φ 1000φ 1250φ 1600
Max. workpiece length L (mm)3000 ~ 80003000 ~ 120006000 ~ 200006000 ~ 20000
Max. workpiece weight (t)16254063
Range of machining diameter (mm)0 ~ φ 8000 ~ φ 10000 ~ φ 12500 ~ φ 1600
Dimension of spindle taper hole (mm)φ 106.375 1:4φ 139.719 1:4φ 196.869 1:4φ 196.869 1:4
Max. faceplate torque (kN • m)162540100
Cutting force of single tool post (kN)6380100125
Faceplate diameter (mm)φ 1000φ 1250φ 1600φ 2000
Steps and range of spindle rotational speed Step Range (r/min)DC stepless 1.6 ~ 320DC stepless 1.5 ~ 300DC stepless 1 ~ 200DC stepless 0.8 ~ 160
Tool post feed range (mm/min) Longitudinal Transverse1 ~ 600 1 ~ 4001 ~ 1000 1 ~ 5001 ~ 500 1 ~ 5001 ~ 500 1 ~ 500
Tool post fast movement (mm/min) Longitudinal Transverse6000 40006000 40006000 40006000 4000
Power of main motor (kW)497598125
