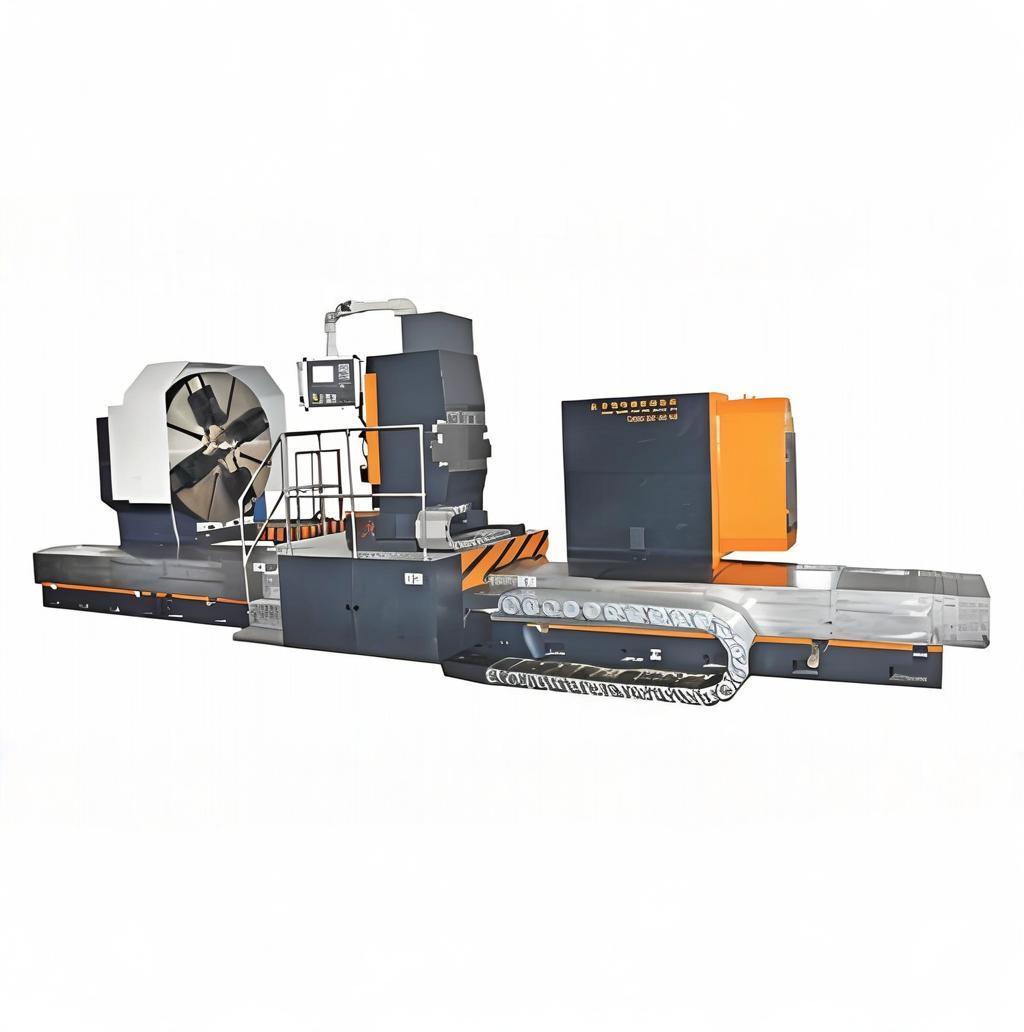

It can perform the turning operations to various curved surface and end face of large axle parts (or cylindrical parts), it also can be applicable for rough and finish machining all kinds of milling groove, flat milling, ellipse, spiral groove, drilling, broaching and tapping operations. The function integration and multiple working procedures and technology compound function of one-time workpiece installing-clamping will be achieved. The CNC brand of SIEMENS, FANUC, GSK and HNC can be selected on this machine.
| Parameter | CH61200 | CH61220 | CH61250 | CH61315 | CHG61250×6/40 |
| Type of lathe bed guideway | Integrated three guideways on lathe bed | Auxiliary guideways + Integrated three guideways on lathe bed | Auxiliary guideways + Integrated three guideways on lathe bed | Integrated four guideways on lathe bed | Integrated four guideways on lathe bed |
| Max. swing diameter(mm) – On lathe bed | φ2000 | φ2200 | φ2500 | φ3150 | φ2500 |
| Max. swing diameter(mm) – On tool post | φ1600 | φ1800 | φ2200 | φ2800 | φ2000 |
| Max. workpiece length L(mm) | 8000 ~ 20000 | 8000 ~ 20000 | 8000 ~ 20000 | 8000 ~ 20000 | 6000 |
| Max. workpiece weight (t) | 40 | 40 | 40 | 50 | 40 |
| Range of machining diameter (mm) | 0 ~ φ1600 | 0 ~ φ2000 | 0 ~ φ2500 | 0 ~ φ2000 | 0 ~ φ2000 |
| Dimension of spindle taper hole (mm) | φ136.869 1:4 | φ136.869 1:4 | φ136.869 1:4 | φ136.869 1:4 | φ136.869 1:4 |
| Max. faceplate torque (kN·m) | 65 | 72 | 42 | 100 | 25 |
| Cutting force of single tool post (kN) | 80 | 64 | 80 | 32 | 32 |
| Faceplate diameter (mm) | φ1600 | φ1600 | φ1600 | φ2000 | φ2000 |
| Steps and range of spindle rotational speed – Step | DC stepless | AC stepless | AC stepless | AC stepless | DC stepless |
| Steps and range of spindle rotational speed – Range (r/min) | 1 ~ 200 | 1 ~ 200 | 0.5 ~ 80 | 1 ~ 320 | 1 ~ 320 |
| Steps and range of C axis rotational speed – Step | Stepless | Stepless | Stepless | Stepless | Stepless |
| Steps and range of C axis rotational speed – Range (r/min) | 0.01 ~ 2 | 0.01 ~ 2 | 0.01 ~ 4 | 0.01 ~ 5 | 0.01 ~ 5 |
| Steps and range of milling head spindle rotational speed – Step | Stepless | Stepless | Stepless | Stepless | Stepless |
| Steps and range of milling head spindle rotational speed – Range (r/min) | 10 ~ 1500 | 0 ~ 2000 | 30 ~ 3000 | 0 ~ 3000 | 0 ~ 3000 |
| Tool post feed range (mm/min) – Longitudinal | 0.1 ~ 2000 | 0.1 ~ 6000 | 1 ~ 5000 | 1 ~ 6000 | 0.1 ~ 1000 |
| Tool post feed range (mm/min) – Transverse | 0.1 ~ 2000 | 0.1 ~ 4000 | 1 ~ 4000 | 1 ~ 4000 | 0.1 ~ 1000 |
| Tool post feed range (mm/min) – Vertical direction | 0.1 ~ 2000 | 0.1 ~ 2000 | 1 ~ 2000 | 1 ~ 2000 | 0.1 ~ 1000 |
